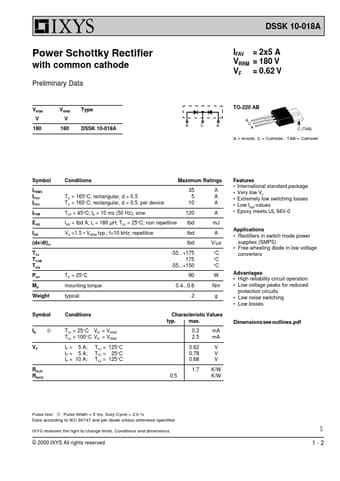

Power Schottky Rectifier
with common cathode
Preliminary Data
VRSM V
180
VRRM V
180
Type DSSK 10-018A
DSSK 10-018A
IFAV = 2x5 A VRRM = 180 V VF = 0.62 V
AC A
TO-220 AB
A C A
C (TAB)
A = Anode, C = Cathode , TAB = Cathode
Symbol IFRMS IFAV IFAV IFSM EAS IAR (dv/dt)cr TVJ TVJM Tstg Ptot Md Weight
Symbol
IR
VF
RthJC RthCH
Conditions
Maximum Ratings
TC = 165°C; rectangular, d = 0.5 TC = 165°C; rectangular, d = 0.5; per device
TVJ = 45°C; tp = 10 ms (50 Hz), sine
IAS = tbd A; L = 180 µH; TVJ = 25°C; non repetitive
VA =1.5 • VRRM typ.; f=10 kHz; repetitive
35 5
10
120
tbd
tbd
tbd
A A A
A
mJ
A
V/ms
-55...+175 175
-55...+150
°C °C °C
TC = 25°C mounting torque
90 0.4...0.
