DSSK60-02A POWER SCHOTTKY RECTIFIER

Power Schottky Rectifier with common cathode DSSK 60-02A DSSK 60-02AR IFAV = 2x30 A VRRM = 200 V VF = 0.70 V VRSM V 200 200 VRRM V 200 200 Type DSSK 60-02A DSSK 60-02AR A C A TO-247 AD Version A ISOPLUS 247TM Version AR AA CC AA C (TAB) Isolated back surface Patent pending C = Cathode, A = Anode, TAB = Cathode Symbol Conditions Maximum Ratings IFRMS IFAV IFAV TC = 155°C; rectangular, d = 0.5 TC = 155°C; rectangular, d = 0.5; per device 70 30 60 IFSM TVJ = 45°C; t.

DSSK60-02A Features

* International standard package

* Very low VF

* Extremely low switching losses

* Low IRM-values

* Epoxy meets UL 94V-0

* Version ..R isolated and UL registered E153432 Applications

* Rectifiers in switch mode power supplies (SMPS)

* Fr

DSSK60-02A-IXYS.pdf

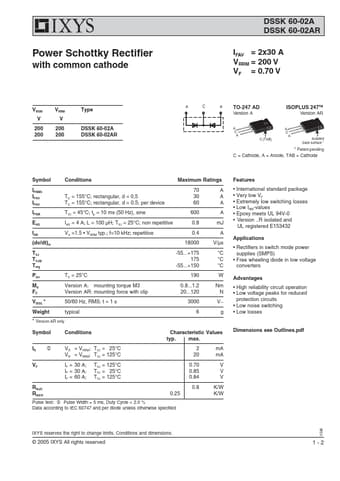

DSSK60-02A Datasheet Preview — Preview of DSSK60-02A PDF

Datasheet Details

Part number:

DSSK60-02A

Manufacturer:

IXYS

File Size:

43.50 KB

Description:

Power schottky rectifier.
