F1600NC120 - Extra Fast Recovery Diode

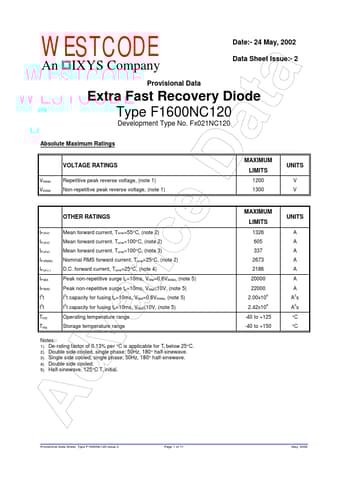

WESTCODE An IXYS Company Date:- 24 May, 2002 Data Sheet Issue:- 2 Provisional Data Extra Fast Recovery Diode Type F1600NC120 Development Type No.
Fx021NC120 Absolute Maximum Ratings VRRM VRSM VOLTAGE RATINGS Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 1200 1300 UNITS V V OTHER RATINGS IF(AV) IF(AV) IF(AV) IF(RMS) IF(d.c.) IFSM IFSM2 I2t I2t THS Tstg Mean forward current, Tsink=55°C, (note 2) Mean forward current.
