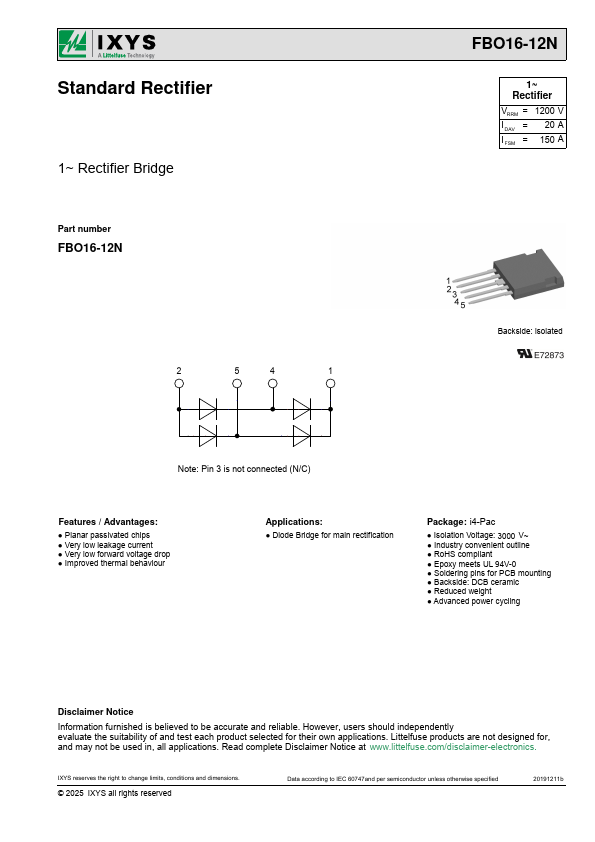

FBO16-12N Standard Rectifier

IXYS

Description

Standard Rectifier 1~ Rectifier Bridge Part number FBO16-12N 2 5 4 1 FBO16-12N 13~ Rectifier VRRM = I DAV = I FSM = 1200 V 20 A 150 A Backsid.

📥 Download Datasheet

FBO16-12N Datasheet Preview — Preview of FBO16-12N PDF

Datasheet Specifications

Part number: FBO16-12N
Manufacturer: IXYS
File Size: 1.19 MB
Datasheet: FBO16-12N-IXYS.pdf
Description: Standard Rectifier

Features

* / Advantages:
* Planar passivated chips
* Very low leakage current
* Very low forward voltage drop

Applications

* Diode Bridge for main rectification Package: i4-Pac
* Isolation Voltage: 3000 V~
* Industry convenient outline
* RoHS compliant
* Epoxy meets UL 94V-0
* Soldering pins for PCB mounting
* Backside: DCB ceramic
* Reduced weight
* Advanced power cycling Disclaim
