IXDD604 - 4-Ampere Dual Low-Side Ultrafast MOSFET

IXDD604 Description

INTEGRATED CIRCUITS DIVISION .
The IXDD604/IXDF604/IXDI604/IXDN604 dual high-speed gate drivers are especially well suited for driving the latest IXYS MOSFETs and IGBTs.

IXDD604 Features

* 4A Source/Sink Drive Current
* Wide Operating Voltage Range: 4.5V to 35V
* -40°C to +125°C Extended Operating Temperature Range
* Logic Input Withstands Negative Swing of up to 5V
* Outputs May be Connected in Parallel for Higher Drive Current
* Matc

IXDD604 Applications

* Efficient Power MOSFET and IGBT Switching
* Switch Mode Power Supplies
* Motor Controls
* DC to DC Converters
* Class-D Switching Amplifiers

📥 Download Datasheet

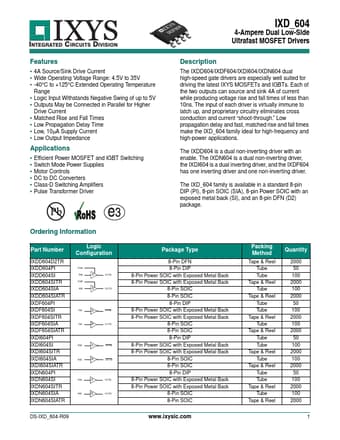

Preview of IXDD604 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IXDD604
Manufacturer
IXYS
File Size
275.42 KB
Datasheet
IXDD604-IXYS.pdf
Description
4-Ampere Dual Low-Side Ultrafast MOSFET
