IXFH34N65X2 Power MOSFET

X2-Class HiPerFETTM Power MOSFET N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Diode IXFA34N65X2 IXFP34N65X2 IXFH34N65X2 Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS dv/dt PD TJ TJM Tstg TL TSOLD FMCd Weight Test Conditions TJ = 25C to 150C TJ = 25C to 150C, RGS = 1M Continuous Transient Maximum Ratings 650 650 30 40 V V V V TC = 25C TC = 25C, Pulse Width Limited by TJM TC = 25C TC = 25C IS  IDM, VDD  VDSS, TJ  150°C TC = 25C 34 68 10 1 50 540 -55 +150 150 -55 +.

IXFH34N65X2 Features

* International Standard Packages

* Low RDS(ON) and QG

* Avalanche Rated

* Low Package Inductance Advantages

* High Power Density

* Easy to Mount

* Space Savings Applications

* Switch-Mode and Resonant-Mode Power Supplies

* DC-DC Converters

* PFC Circuits

IXFH34N65X2 Datasheet (205.05 KB)

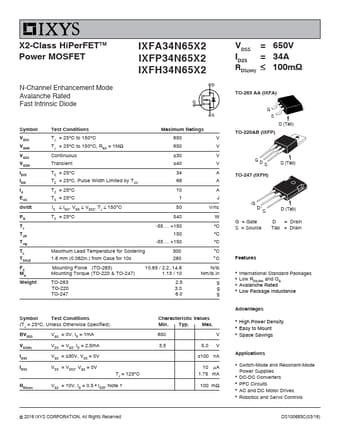

IXFH34N65X2 Datasheet Preview — Preview of IXFH34N65X2 PDF

Datasheet Details

Part number:

IXFH34N65X2

Manufacturer:

IXYS

File Size:

205.05 KB

Description:

Power mosfet.
