* High Voltage IGBT - substitute for high voltage MOSFETs with significantly lower voltage drop and comparable switching speed - substitute for high voltage thyristors with voltage control of turn on & turn off - substitute for electromechanical trigger and discharge relays
* ISOPLUS
IXLF19N250A Datasheet (57.60 KB)

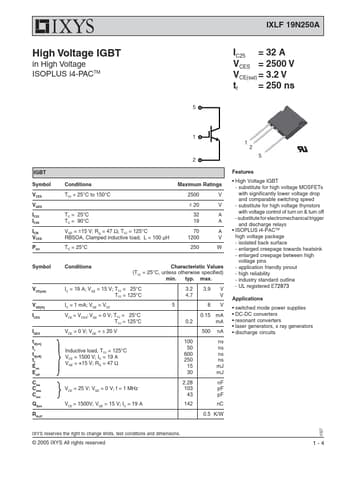

IXLF19N250A
IXYS
57.60 KB
High voltage igbt.
High Voltage IGBT
in High Voltage ISOPLUS i4-PACTM
IXLF 19N250A
IC25 = 32 A VCES = 2500 V VCE(sat) = 3.2 V tf = 250 ns
5
IGBT
Symbol
VCES VGES IC25 .
