M0310YH320 Soft Recovery Diode

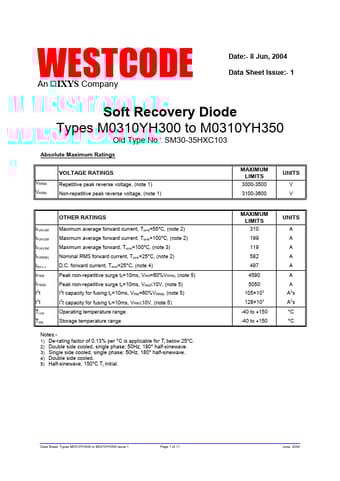

WESTCODE An IXYS Company Date:- 8 Jun, 2004 Data Sheet Issue:- 1 Soft Recovery Diode Types M0310YH300 to M0310YH350 Old Type No.: SM30-35HXC103 Absolute Maximum Ratings VRRM VRSM VOLTAGE RATINGS Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 3000-3500 3100-3600 UNITS V V IF(AV)M IF(AV)M IF(AV)M IF(RMS) If(d.c.) IFSM IFSM2 I2t I2t Tj op Tstg OTHER RATINGS Maximum average forward current, Tsink=55°C, (note 2) Maximum average forward .

M0310YH320 Datasheet (373.50 KB)
