M1163NC450 Fast Recovery Diode

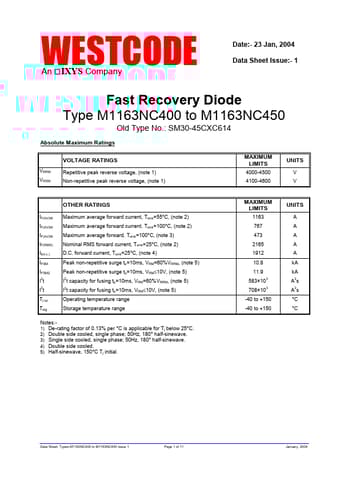

WESTCODE An IXYS Company Date:- 23 Jan, 2004 Data Sheet Issue:- 1 Fast Recovery Diode Type M1163NC400 to M1163NC450 Old Type No.: SM30-45CXC614 Absolute Maximum Ratings VRRM VRSM VOLTAGE RATINGS Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 4000-4500 4100-4600 UNITS V V IF(AV)M IF(AV)M IF(AV)M IF(RMS) If(d.c.) IFSM IFSM2 I2t I2t Tj op Tstg OTHER RATINGS Maximum average forward current, Tsink=55°C, (note 2) Maximum average forward .

M1163NC450 Datasheet (452.32 KB)
