M2413VC220, M2413VC200 Datasheet - IXYS

M2413VC220 Fast Recovery Diode

    WESTCODE An IXYS Company Date:- 10 Nov, 2003 Data Sheet Issue:- 2 Provisional Data Fast Recovery Diode Type M2413V#200 to M2413V#250 Development Type No.: MX070VC200-250 Absolute Maximum Ratings VRRM VRSM VOLTAGE RATINGS Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 2000-2500 2100-2600 UNITS V V IF(AV)M IF(AV)M IF(AV)M IF(RMS) IF(d.c.) IFSM IFSM2 I2t I2t Tj op Tstg OTHER RATINGS Maximum average forward current, Tsink=.

M2413VC200-IXYS.pdf

This datasheet PDF includes multiple part numbers: M2413VC220, M2413VC200. Please refer to the document for exact specifications by model.

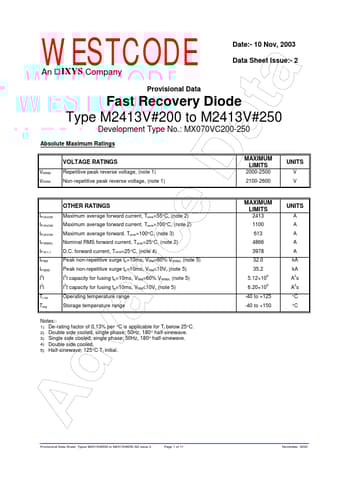

M2413VC220 Datasheet Preview Page 2 M2413VC220 Datasheet Preview Page 3

Datasheet Details

Part number:

M2413VC220, M2413VC200

Manufacturer:

IXYS

File Size:

239.39 KB

Description:

Fast recovery diode.

Note:

This datasheet PDF includes multiple part numbers: M2413VC220, M2413VC200.
Please refer to the document for exact specifications by model.
