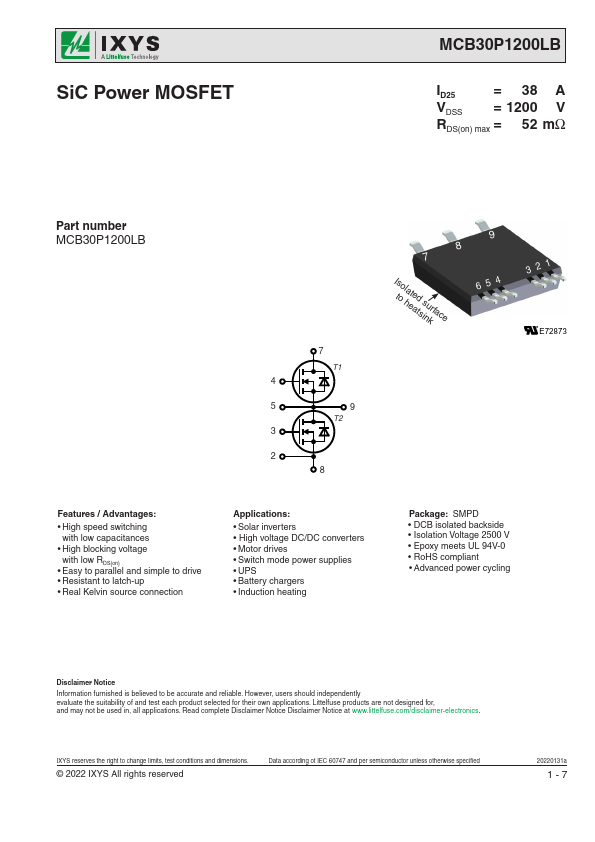

MCB30P1200LB SiC Power MOSFET

IXYS

Description

SiC Power MOSFET MCB30P1200LB ID25 = 38 A VDSS = 1200 V R = DS(on) max 52 mΩ Part number MCB30P1200LB 7 T1 4 9 8 7 Itsoohlaeteadtsisnukrface.

📥 Download Datasheet

MCB30P1200LB Datasheet Preview — Preview of MCB30P1200LB PDF

Datasheet Specifications

Part number: MCB30P1200LB
Manufacturer: IXYS
File Size: 427.37 KB
Datasheet: MCB30P1200LB-IXYS.pdf
Description: SiC Power MOSFET

Features

* / Advantages:
* High speed switching with low capacitances
* High blocking voltage with low RDS(on)
* Easy to parallel and simple to drive
* Resistant to latch-up

Applications

* Solar inverters
* High voltage DC/DC converters
* Motor drives
* Switch mode power supplies
* UPS
* Battery chargers

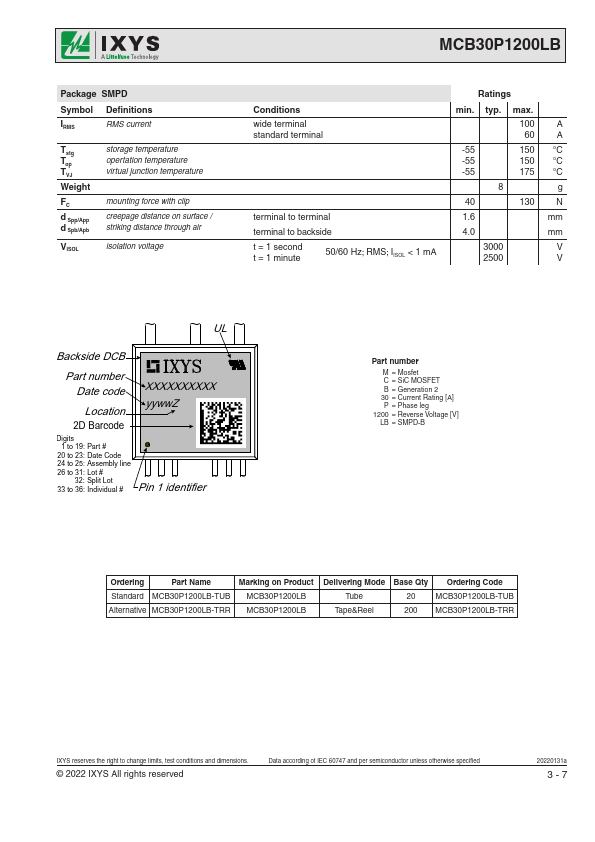

* Induction heating Package: SMPD
* DCB isolated backside
* Isolation Voltage 2500 V
* Epoxy meets
