MCD160-30io3 Thyristor/Diode

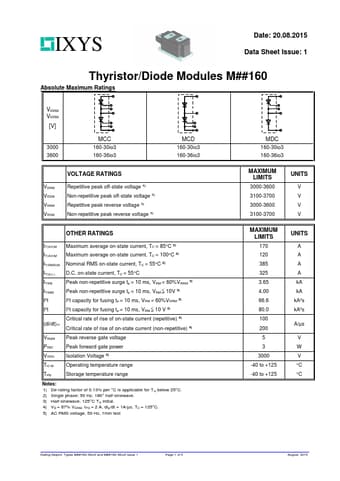

IXYS Date: 20.08.2015 Data Sheet Issue: 1 Thyristor/Diode Modules M##160 Absolute Maximum Ratings VRRM VDRM [V] 3000 3600 MCC 160-30io3 160-36io3 MCD 160-30io3 160-36io3 VDRM VDSM VRRM VRSM VOLTAGE RATINGS Repetitive peak off-state voltage 1) Non-repetitive peak off-state voltage 1) Repetitive peak reverse voltage 1) Non-repetitive peak reverse voltage 1) OTHER RATINGS IT(AV)M IT(AV)M IT(RMS)M IT(d.c.) ITSM ITSM2 I2t I2t (di/dt)cr Maximum average on-state current, TC = 85°C 2) Maximum .

MCD160-30io3 Datasheet (224.01 KB)
