MCD94-22io1B Thyristor / Diode Module

IXYS

MCD94-22io1B Description

Thyristor Diode Module Phase leg Part number MCD94-22io1B 3 1 5 42 MCD94-22io1B VRRM I TAV VT = 2x 2200 V = 104 A = 1.46 V Backside: isolated .

MCD94-22io1B Features

* / Advantages:
* Thyristor for line frequency
* Planar passivated chip
* Long-term stability

MCD94-22io1B Applications

* Line rectifying 50/60 Hz
* Softstart AC motor control
* DC Motor control
* Power converter
* AC power control
* Lighting and temperature control Package: TO-240AA
* Isolation Voltage: 4800 V~
* Industry standard outline
* RoHS compliant
* Soldering pins fo

📥 Download Datasheet

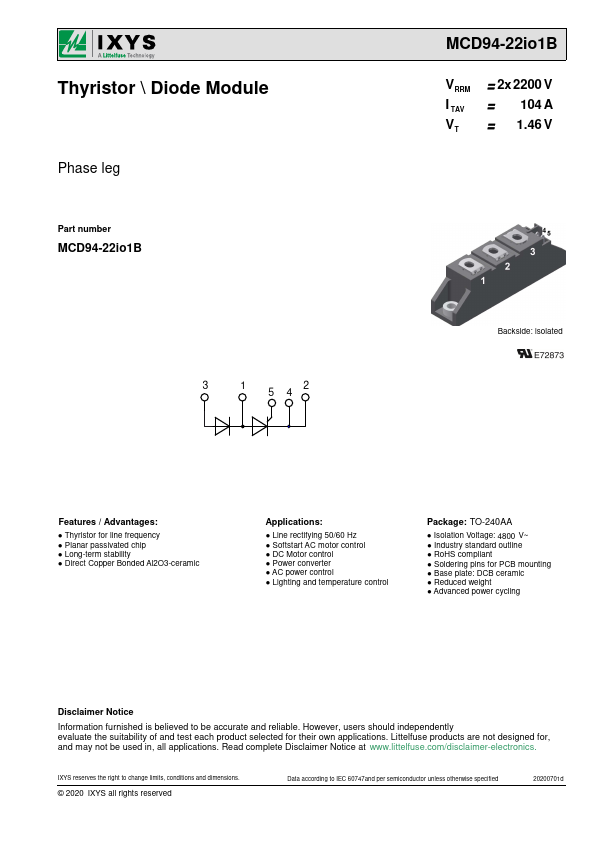

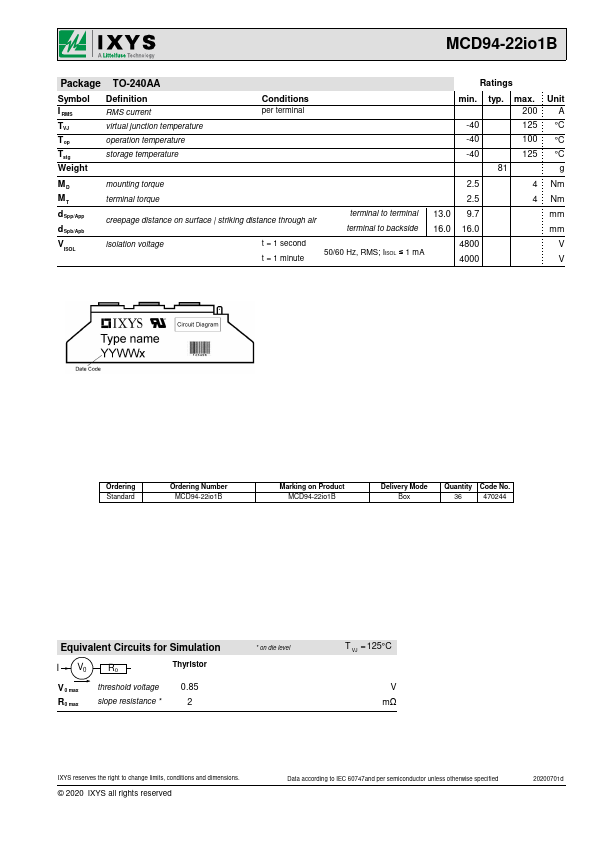

MCD94-22io1B Datasheet Preview — Preview of MCD94-22io1B PDF

Datasheet Details

Part number: MCD94-22io1B
Manufacturer: IXYS
File Size: 406.82 KB
Datasheet: MCD94-22io1B-IXYS.pdf
Description: Thyristor / Diode Module
