MCMA140P1200TA Thyristor Module

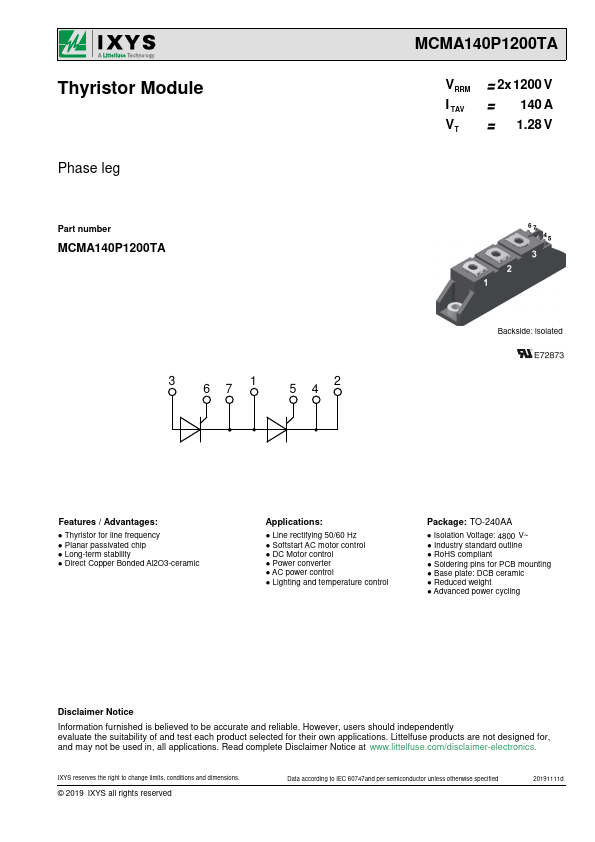

📥 Download Datasheet Datasheet Preview Page 1

Description

Thyristor Module Phase leg Part number MCMA140P1200TA MCMA140P1200TA VRRM I TAV VT = 2x 1200 V = 140 A = 1.28 V 3 67 1 542 Backside: isolated .
M = Module C = Thyristor (SCR) M = Thyristor A = (up to 1800V) 140 = Current Rating [A] P = Phase leg 1200 = Reverse Voltage [V] TA = TO-240AA-1B Ord.

📥 Download Datasheet

Preview of MCMA140P1200TA PDF

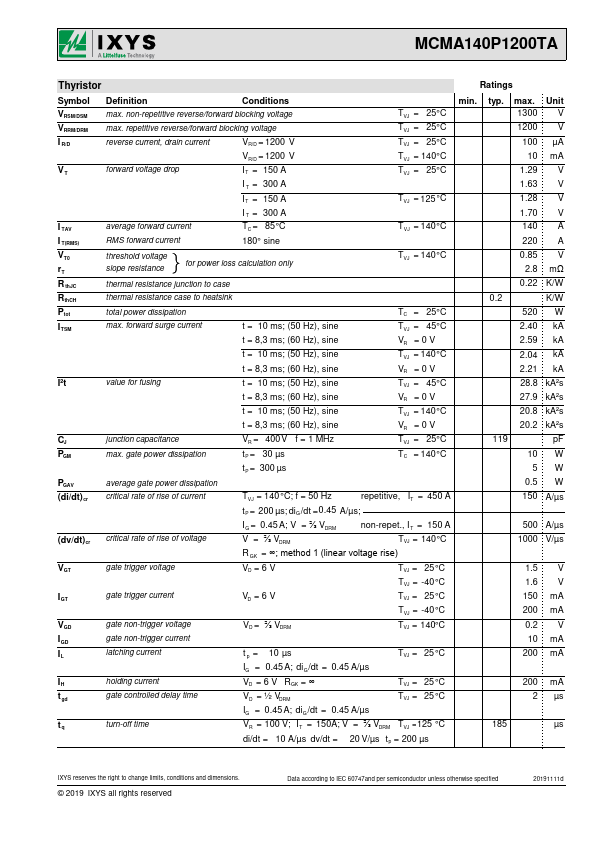

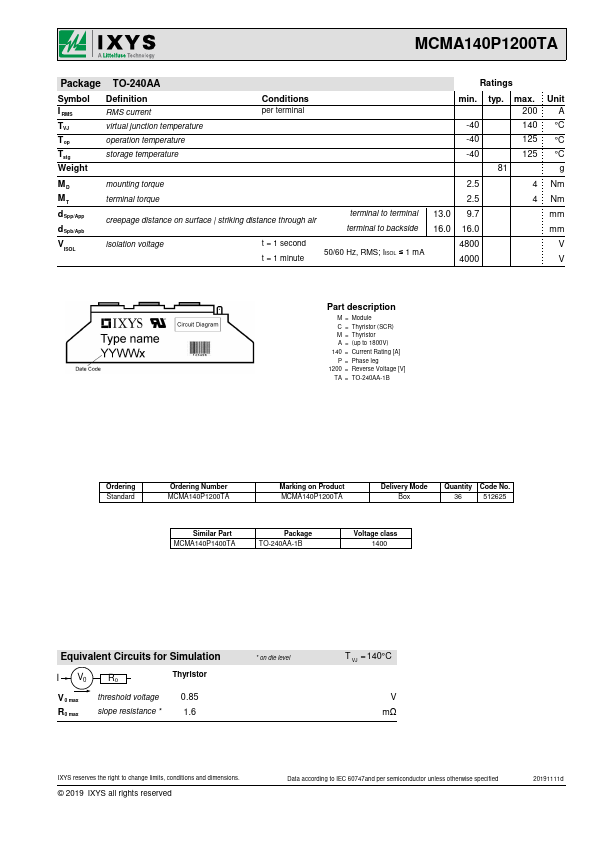

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MCMA140P1200TA
Manufacturer
IXYS
File Size
429.90 KB
Datasheet
MCMA140P1200TA-IXYS.pdf
Description
Thyristor Module

Features

* / Advantages:
* Thyristor for line frequency
* Planar passivated chip
* Long-term stability

Applications

* Line rectifying 50/60 Hz
* Softstart AC motor control
* DC Motor control
* Power converter
* AC power control
* Lighting and temperature control Package: TO-240AA
* Isolation Voltage: 4800 V~
* Industry standard outline
* RoHS compliant
* Soldering pins fo
