MCMA260PD1800YB Datasheet - IXYS

Thyristor / Diode Module

MCMA260PD1800YB Features

* / Advantages:

* Thyristor for line frequency

* Planar passivated chip

* Long-term stability

* Direct Copper Bonded Al2O3-ceramic Applications:

* Line rectifying 50/60 Hz

* Softstart AC motor control

* DC Motor control

* Power converter

* AC power control

* Li

MCMA260PD1800YB General Description

M = Module C = Thyristor (SCR) M = Thyristor A = (up to 1800V) 260 = Current Rating [A] PD = Phase leg 1800 = Reverse Voltage [V] YB = Y4-M6 Ordering Standard Ordering Number MCMA260PD1800YB Marking on Product MCMA260PD1800YB Delivery Mode Box Quantity Code No. 6 515579 Equivalent Circuits f.

MCMA260PD1800YB Datasheet (259.26 KB)

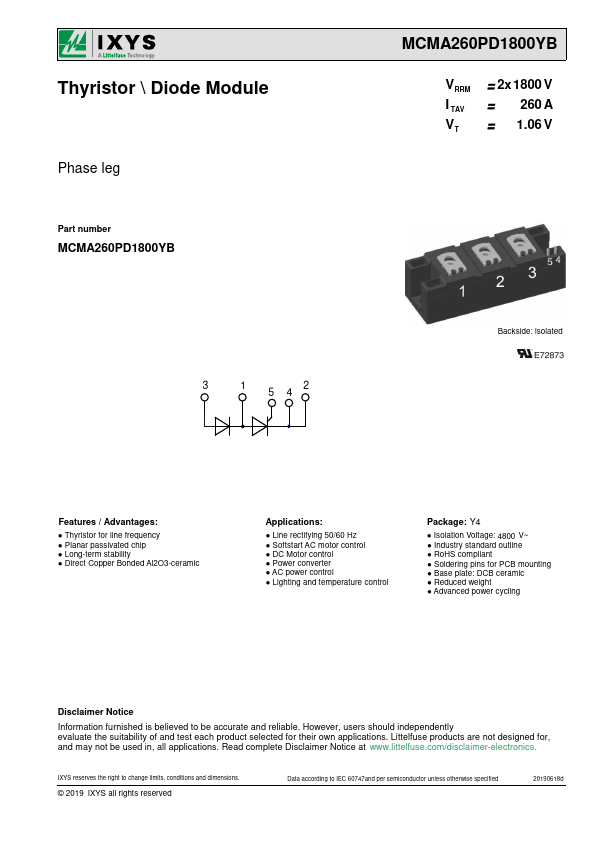

Preview of MCMA260PD1800YB PDF

Datasheet Details

Part number:

MCMA260PD1800YB

Manufacturer:

IXYS

File Size:

259.26 KB

Description:

Thyristor / diode module.
Thyristor Diode Module Phase leg Part number MCMA260PD1800YB 3 1 5 42 MCMA260PD1800YB VRRM I TAV VT = 2x 1800 V = 260 A = 1.06 V Backside: isol.

📁 Related Datasheet

MCMA260PD1600YB Thyristor / Diode Module (IXYS)

MCMA260P1600YA Thyristor (IXYS)

MCMA265PD1600KB Thyristor / Diode Module (IXYS)

MCMA200PD1600SA Thyristor Diode Module (IXYS)

MCMA200PD1800YB Thyristor/Diode (IXYS)

MCMA240UI1600PED Thyristor (IXYS)

MCMA25PD1200TB Thyristor / Diode Module (IXYS)

MCMA25PD1600TB Thyristor / Diode Module (IXYS)

MCMA110PD1600TB Thyristor / Diode Module (IXYS)

MCMA140P1200TA Thyristor Module (IXYS)

TAGS

MCMA260PD1800YB Thyristor Diode Module IXYS

Image Gallery

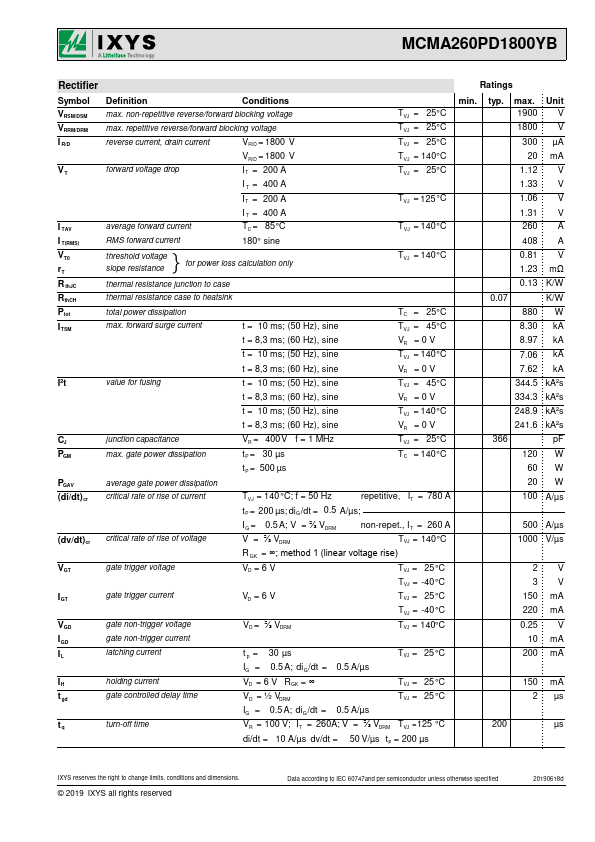

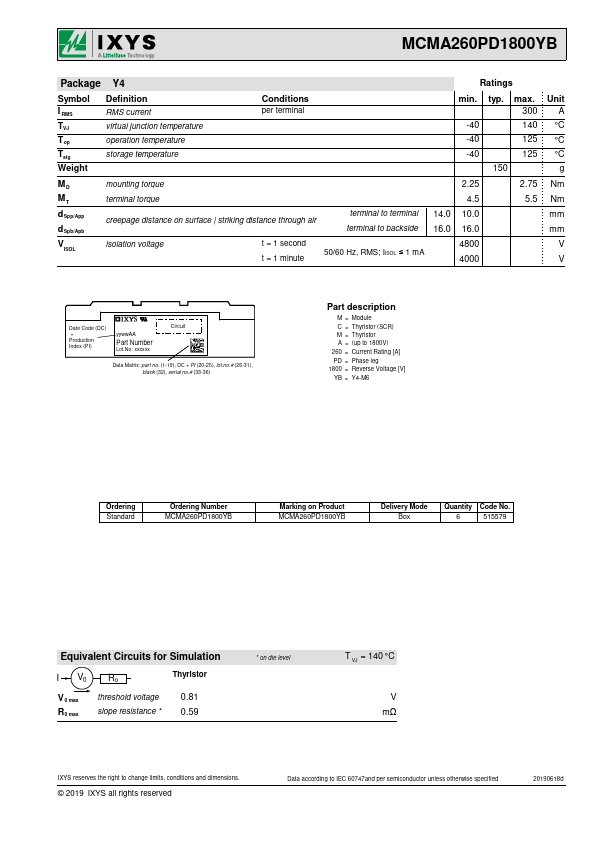

MCMA260PD1800YB Datasheet Preview Page 2 MCMA260PD1800YB Datasheet Preview Page 3
