MCMA650MT1400NKD Thyristor Module

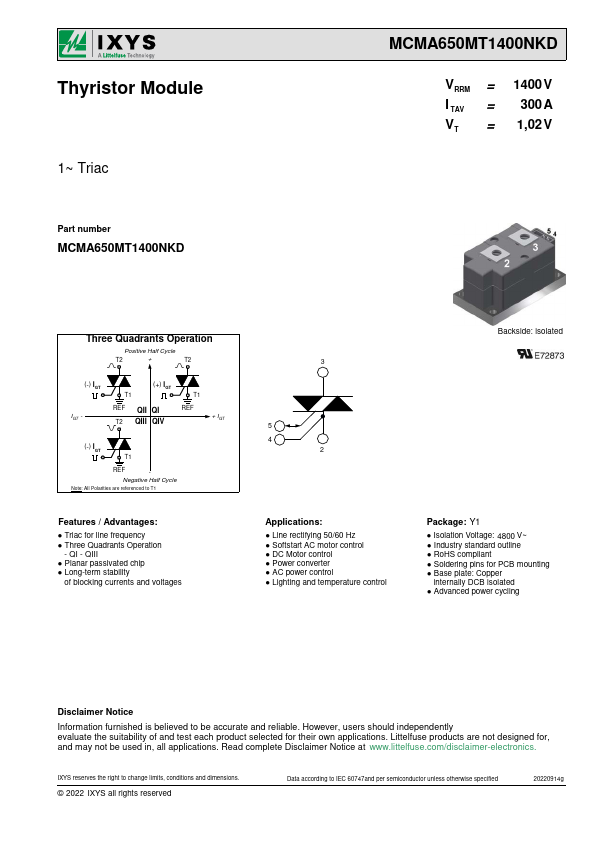

📥 Download Datasheet Datasheet Preview Page 1

Description

Thyristor Module 1~ Triac Part number MCMA650MT1400NKD MCMA650MT1400NKD VRRM = I TAV = VT = 1400 V 300 A 1,02 V Three Quadrants Operation Pos.
M = Module C = Thyristor (SCR) M = Thyristor A = (up to 1800V) 650 = Current Rating [A] MT = 1~ Triac 1400 = Reverse Voltage.

📥 Download Datasheet

Preview of MCMA650MT1400NKD PDF

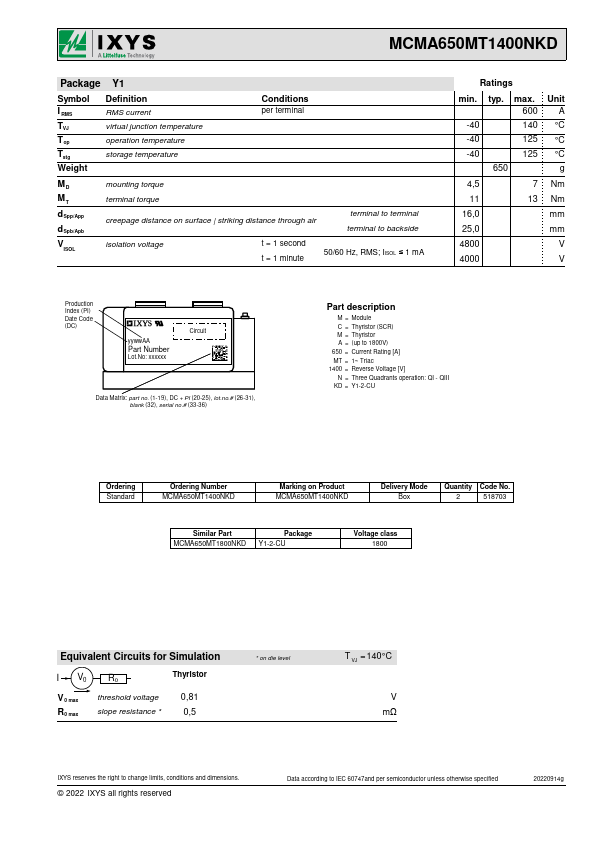

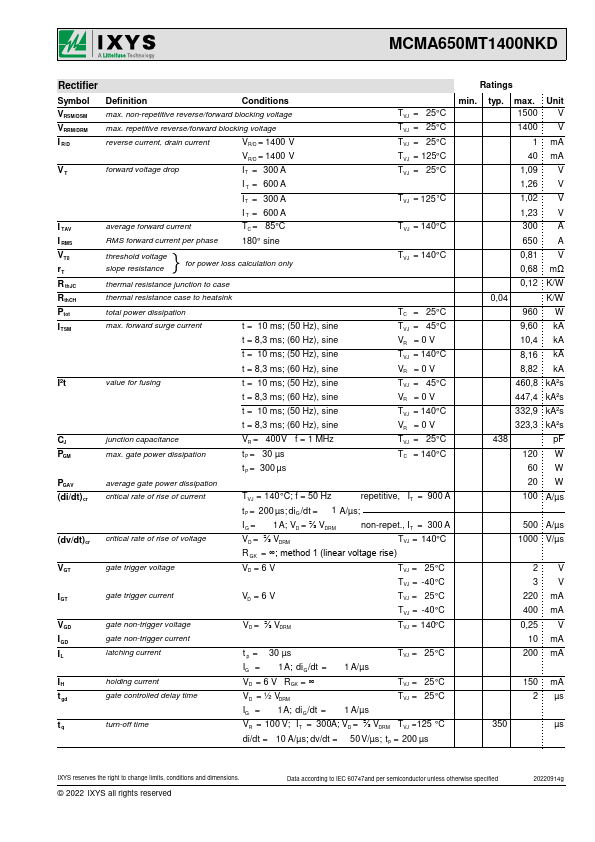

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MCMA650MT1400NKD
Manufacturer
IXYS
File Size
135.96 KB
Datasheet
MCMA650MT1400NKD-IXYS.pdf
Description
Thyristor Module

Features

* / Advantages:
* Triac for line frequency
* Three Quadrants Operation - QI - QIII
* Planar passivated chip

Applications

* Line rectifying 50/60 Hz
* Softstart AC motor control
* DC Motor control
* Power converter
* AC power control
* Lighting and temperature control Backside: isolated Package: Y1
* Isolation Voltage: 4800 V~
* Industry standard outline
* RoHS compliant
* Sold
