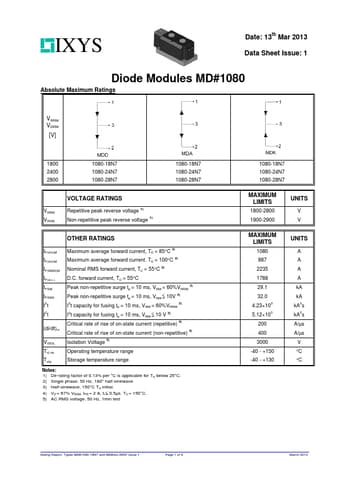

IXYS Date: 13th Mar 2013 Data Sheet Issue: 1 Diode Modules MD#1080 Absolute Maximum Ratings VRRM VDRM [V] 1800 2400 2800 1080-18N7 1080-24N7 1080-28N7 1080-18N7 1080-24N7 1080-28N7 VRRM VRSM VOLTAGE RATINGS Repetitive peak reverse voltage 1) Non-repetitive peak reverse voltage 1) OTHER RATINGS IF(AV)M IF(AV)M IF(RMS)M IF(d.c.) IFSM IFSM2 I2t I2t (di/dt)cr VISOL Tvj op Tstg Maximum average forward current, TC = 85°C 2) Maximum average forward current. TC = 100°C 2) Nominal RMS forward current, TC = 55°C 2) D.C. forward current, TC = 55°C Peak non-repetitive surge tp = 10 ms, VRM = 60%VRRM 3) Peak non-repetitive surge tp = 10 ms, VRM ≤ 10V 3) I2t capacity for fusing tp = 10 ms, VRM = 60%VRRM 3) I2t capacity for fusing tp = 10 ms, VRM ≤ 10 V 3) Critical rate of rise of on-state current (repetitive) 4) Critical rate of rise of on-state current (non-repetitive) 4) Isolation Voltage 5) Operating temperature range Storage temperature range Notes: 1) De-rating factor of...
