MDNA380P2200KC Datasheet - IXYS

High Voltage Standard Rectifier Module

MDNA380P2200KC Features

* / Advantages:

* Planar passivated chips

* Very low leakage current

* Very low forward voltage drop

* Improved thermal behaviour Applications:

* Diode for main rectification

* For single and three phase bridge configurations

* Supplies for DC power equipment

* Input r

MDNA380P2200KC General Description

M = Module D = Diode N = High Voltage Standard Rectifier A = (>= 2000V) 380 = Current Rating [A] P = Phase leg 2200 = Reverse Voltage [V] KC = Y1-CU Ordering Standard Ordering Number MDNA380P2200KC Marking on Product MDNA380P2200KC Delivery Mode Box Quantity Code No. 3 517449 Similar Part MD.

MDNA380P2200KC Datasheet (205.41 KB)

Preview of MDNA380P2200KC PDF

Datasheet Details

Part number:

MDNA380P2200KC

Manufacturer:

IXYS

File Size:

205.41 KB

Description:

High voltage standard rectifier module.

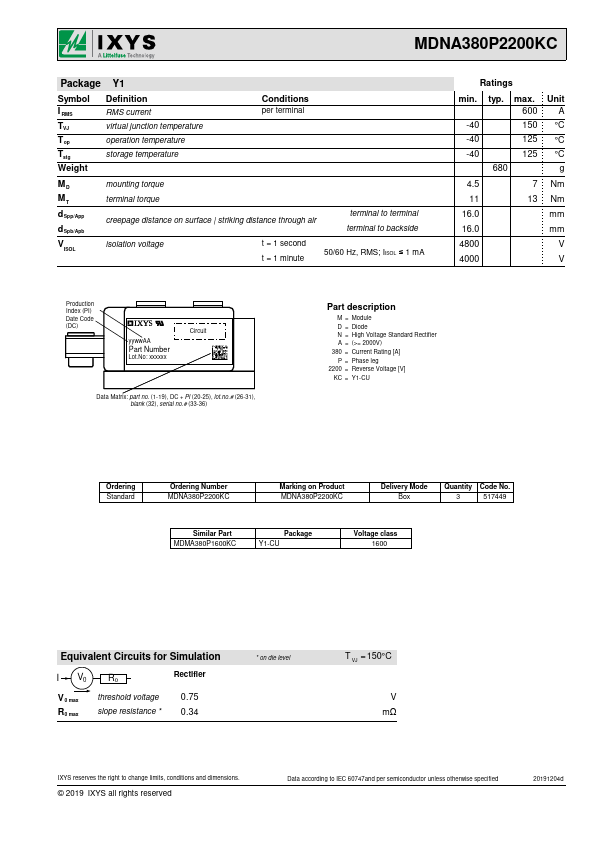

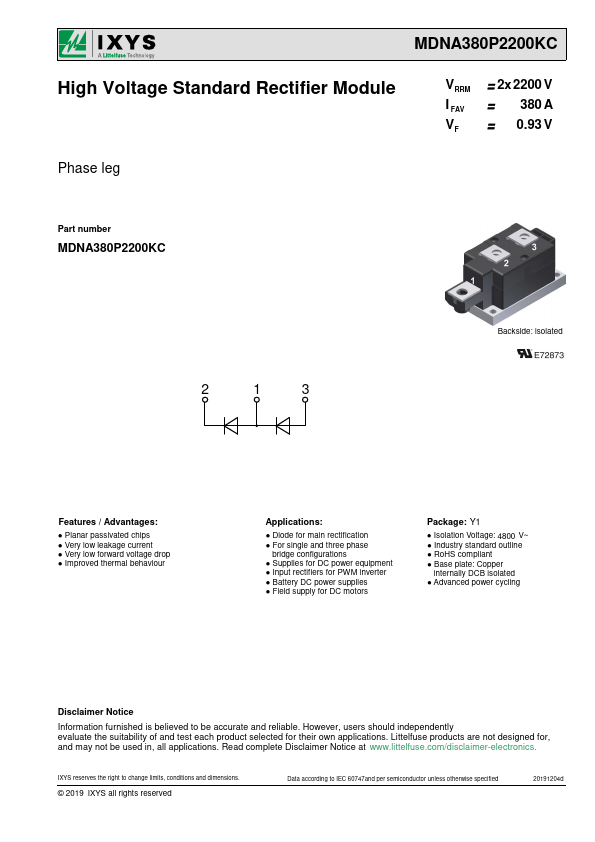

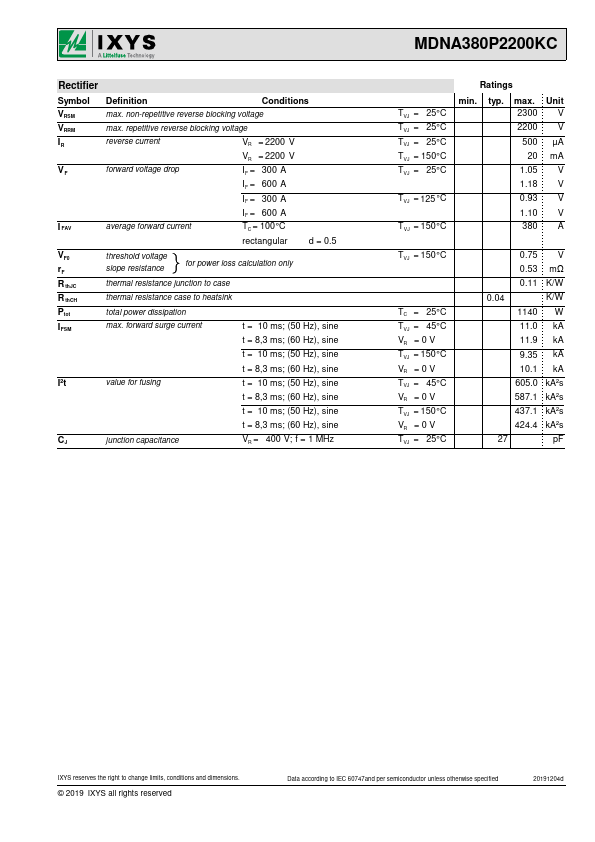

MDNA380P2200KC High Voltage Standard Rectifier Module VRRM I FAV VF = 2x 2200 V = 380 A = 0.93 V Phase leg Part number MDNA380P2200KC 2 1 3 B.
