MDO500-12N1 Standard Rectifier Module

IXYS

Description

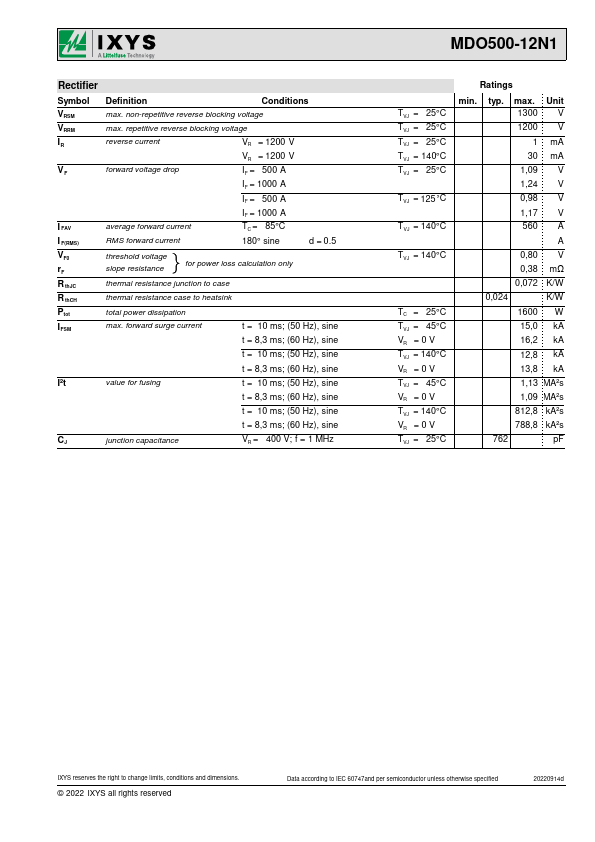

Standard Rectifier Module Single Diode Part number MDO500-12N1 2 3 MDO500-12N1 VRRM = I FAV = VF = 1200 V 560 A 0,98 V Backside: isolated F.

📥 Download Datasheet

MDO500-12N1 Datasheet Preview — Preview of MDO500-12N1 PDF

Datasheet Specifications

Part number: MDO500-12N1
Manufacturer: IXYS
File Size: 151.31 KB
Datasheet: MDO500-12N1_IXYSCorporation.pdf
Description: Standard Rectifier Module

Features

* / Advantages:
* Planar passivated chips
* Very low leakage current
* Very low forward voltage drop

Applications

* Diode for main rectification
* For single and three phase bridge configurations
* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies

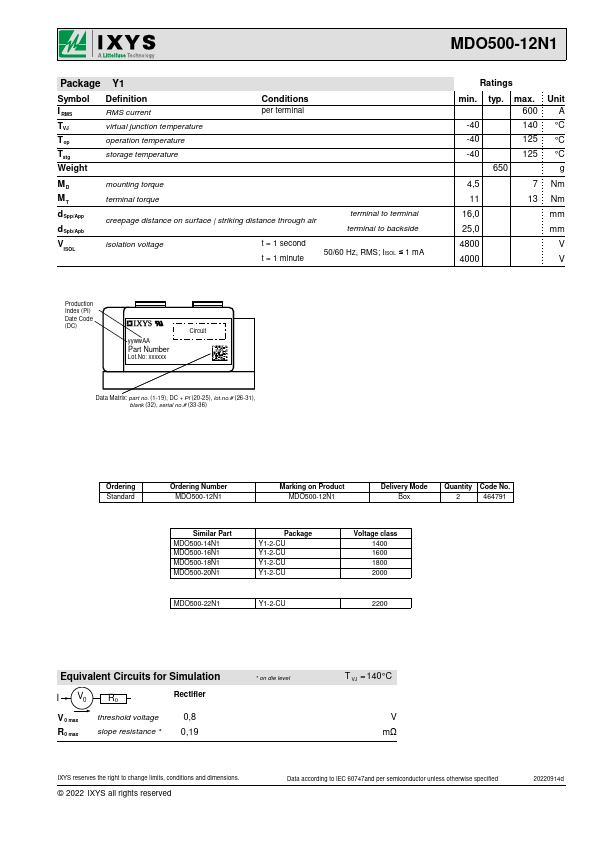

* Field supply for DC motors Package: Y1
* Isolation Voltage: 4800 V~
* Industry stand
