MEE300-06DA - Fast Recovery Epitaxial Diode

MEE300-06DA Description

FRED Module Fast Recovery Epitaxial Diode MEA/MEK/MEE 300-06DA VRRM = 600 V IFAVM = 304 A trr = 250 ns Part number MEA 300-06DA MEK 300-06DA MEE 300.

MEE300-06DA Features

* / Advantages:
* International standard package with DCB ceramic base plate
* Planar passivated chips
* Short recovery time
* Low switching losses
* Soft recovery behaviour
* High reliability circuit operation
* Low voltage peaks for reduced protection circuits
* Low n

MEE300-06DA Applications

* Antiparallel diode for high frequency switching devices
* Free wheeling diode in converters and motor control circuits
* Inductive heating and melting
* Uninterruptible power supplies (UPS)
* Ultrasonic cleaners and welders Package: Y4-M6
* Isolation voltage: 3600 V~

📥 Download Datasheet

Preview of MEE300-06DA PDF

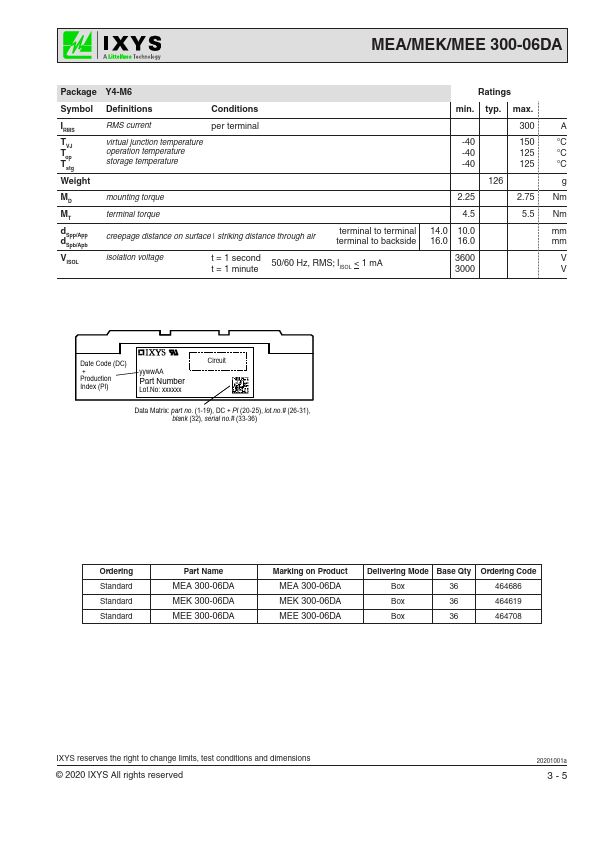

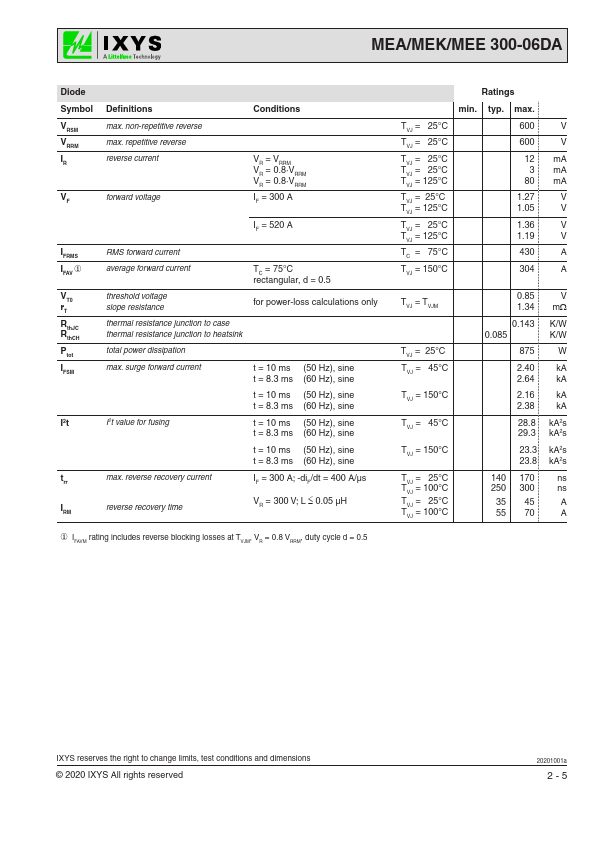

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MEE300-06DA
Manufacturer
IXYS
File Size
226.06 KB
Datasheet
MEE300-06DA-IXYS.pdf
Description
Fast Recovery Epitaxial Diode
