MEK250-12DA Fast Recovery Epitaxial Diode

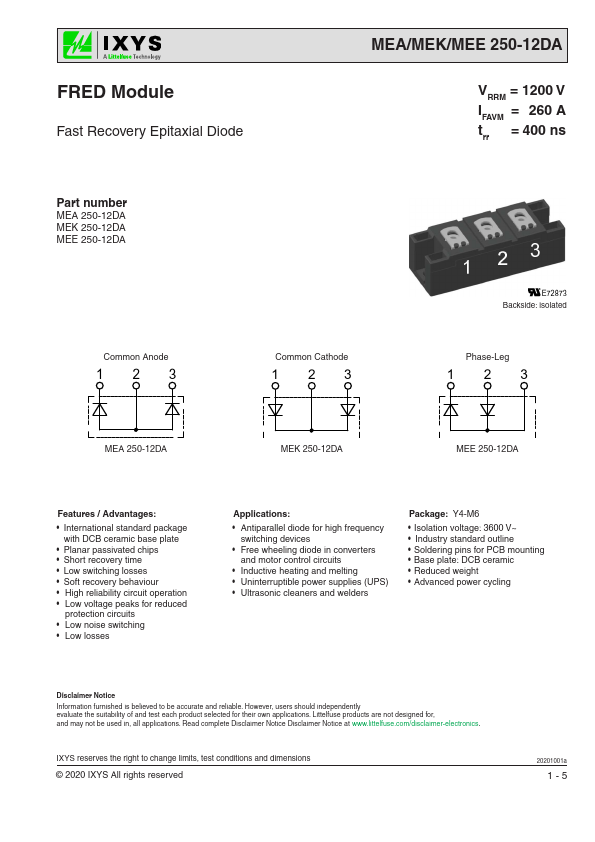

📥 Download Datasheet  Datasheet Preview Page 1

Description

FRED Module Fast Recovery Epitaxial Diode MEA/MEK/MEE 250-12DA VRRM = 1200 V IFAVM = 260 A trr = 400 ns Part number MEA 250-12DA MEK 250-12DA MEE 25.

📥 Download Datasheet

Preview of MEK250-12DA PDF

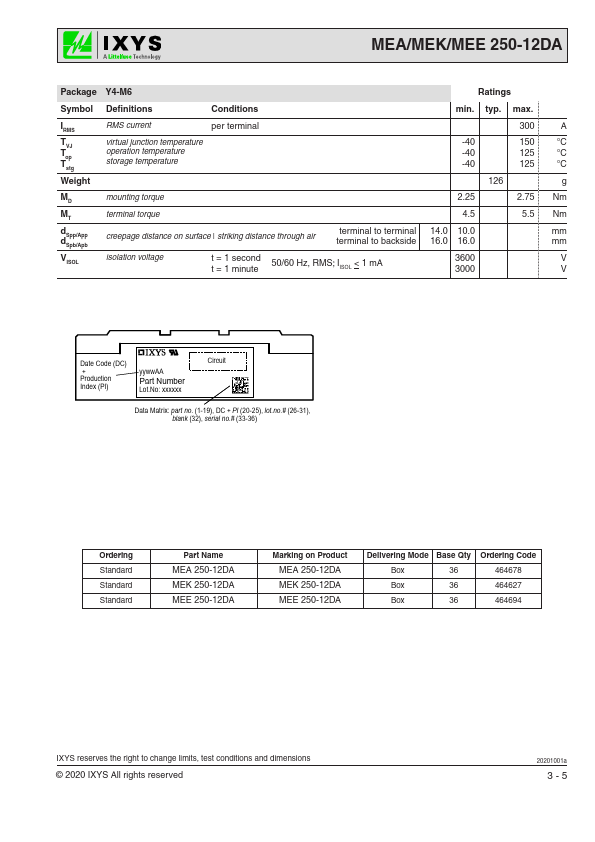

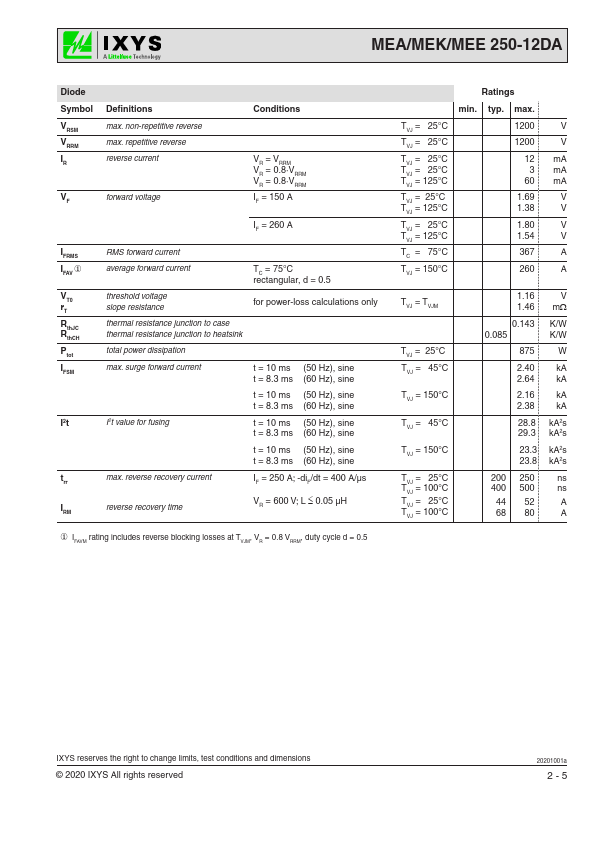

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MEK250-12DA
Manufacturer
IXYS
File Size
239.10 KB
Datasheet
MEK250-12DA-IXYS.pdf
Description
Fast Recovery Epitaxial Diode

Features

* / Advantages:
* International standard package with DCB ceramic base plate
* Planar passivated chips
* Short recovery time
* Low switching losses
* Soft recovery behaviour
* High reliability circuit operation
* Low voltage peaks for reduced protection circuits
* Low n

Applications

* Antiparallel diode for high frequency switching devices
* Free wheeling diode in converters and motor control circuits
* Inductive heating and melting
* Uninterruptible power supplies (UPS)
* Ultrasonic cleaners and welders Package: Y4-M6
* Isolation voltage: 3600 V~
