MEO500-06DA Fast Recovery Epitaxial Diode

📥 Download Datasheet  Datasheet Preview Page 1

Description

FRED Module Fast Recovery Epitaxial Diode Single Diode Part number MEO 500-06DA 3 MEO 500-06DA VRRM = 600 V IFAVM = 514 A trr = 250 ns E72873 Backsid.

📥 Download Datasheet

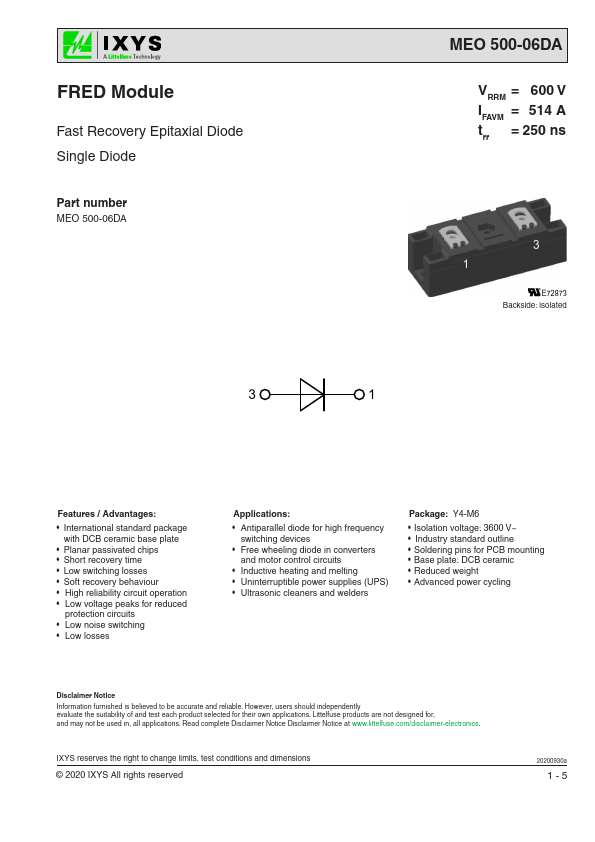

Preview of MEO500-06DA PDF

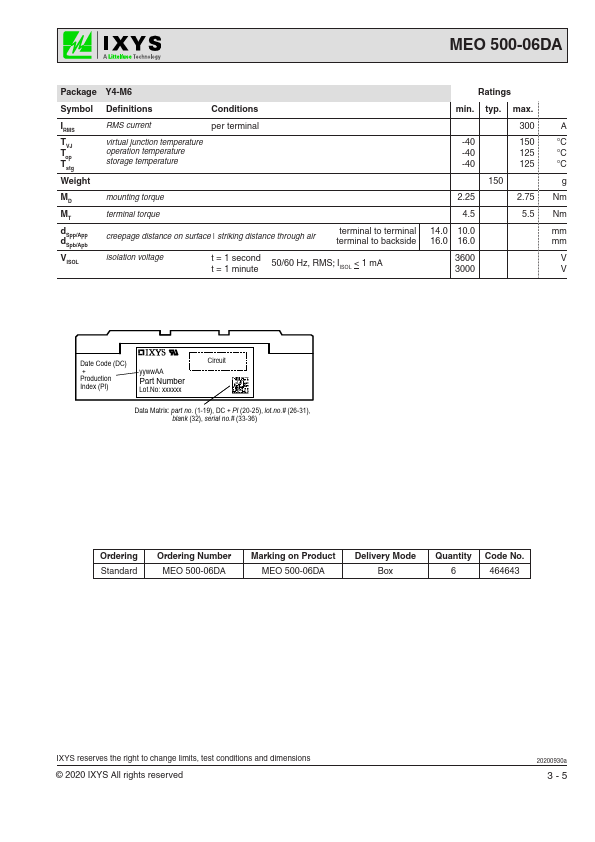

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MEO500-06DA
Manufacturer
IXYS
File Size
230.44 KB
Datasheet
MEO500-06DA-IXYS.pdf
Description
Fast Recovery Epitaxial Diode

Features

* / Advantages:
* International standard package with DCB ceramic base plate
* Planar passivated chips
* Short recovery time
* Low switching losses
* Soft recovery behaviour
* High reliability circuit operation
* Low voltage peaks for reduced protection circuits
* Low n

Applications

* Antiparallel diode for high frequency switching devices
* Free wheeling diode in converters and motor control circuits
* Inductive heating and melting
* Uninterruptible power supplies (UPS)
* Ultrasonic cleaners and welders Package: Y4-M6
* Isolation voltage: 3600 V~
