Converter - brake - inverter module.

MIAA15WE600TMH, Converter - Brake - Inverter Module

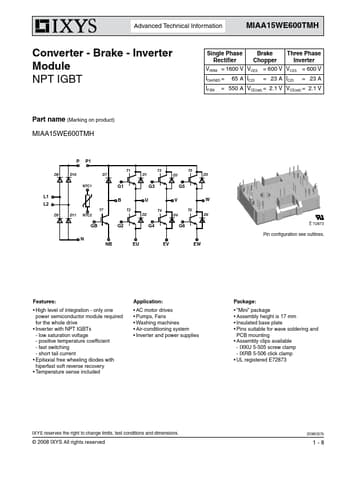

Advanced Technical Information MIAA15WE600TMH Converter - Brake - Inverter Module NPT IGBT Single Phase Brake Three Phase Rectifier Chopper Inverter VRRM = 1600 V VCES = 600 V VCES = 600 V IDAVM25 = 65 A IC25 = 23 A IC25 = 23 A IFSM = 550 A VCE(sat) = 2.1 V VCE(sat) = 2.1 V Part name (Marking on product) MIAA15WE600TMH D8 L1 L2 D9 P P1 D10 D7 T1 NTC1 G1 T3 D1 G3 T5 D3 G5 D5 T7 D11 NTC2 GB B T2 G2 U T4 D2 G4 V T6 D4 G6 W D6 N NB EU EV EW E 72873 Pin configu

MIAA15WE600TMH Features

* High level of integration - only one power semiconductor module required for the whole drive

* Inverter with NPT IGBTs - low saturation voltage - positive temperature coefficient - fast switching - short tail current

* Epitaxial free wheeling diodes with
