MMO230-16io7, MMO230 AC Controller Modules

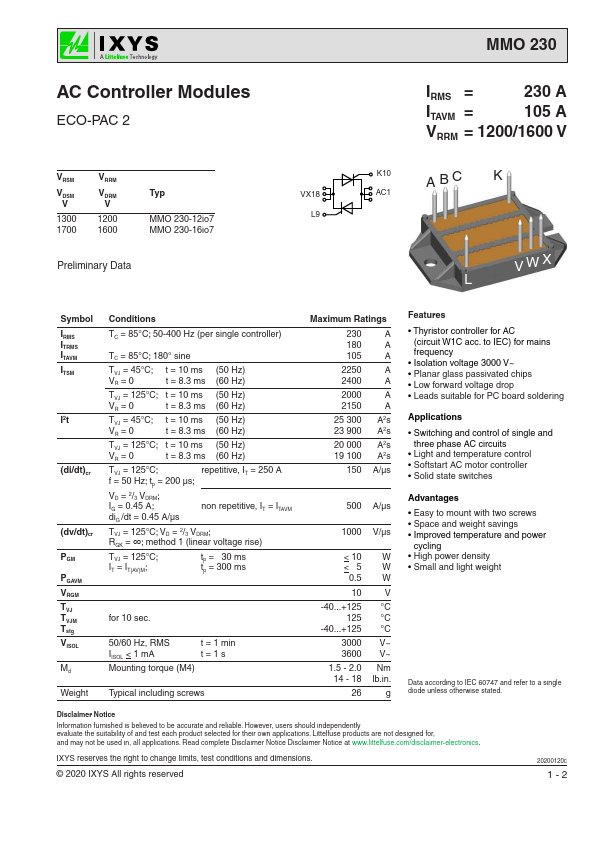

📥 Download Datasheet  Datasheet Preview Page 1

Description

MMO 230 AC Controller Modules ECO-PAC 2 IRMS = 230 A ITAVM = 105 A VRRM = 1200/1600 V VRSM VDSM V 1300 1700 VRRM VDRM V 1200 1600 Typ MMO 230.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MMO230-16io7, MMO230. Please refer to the document for exact specifications by model.

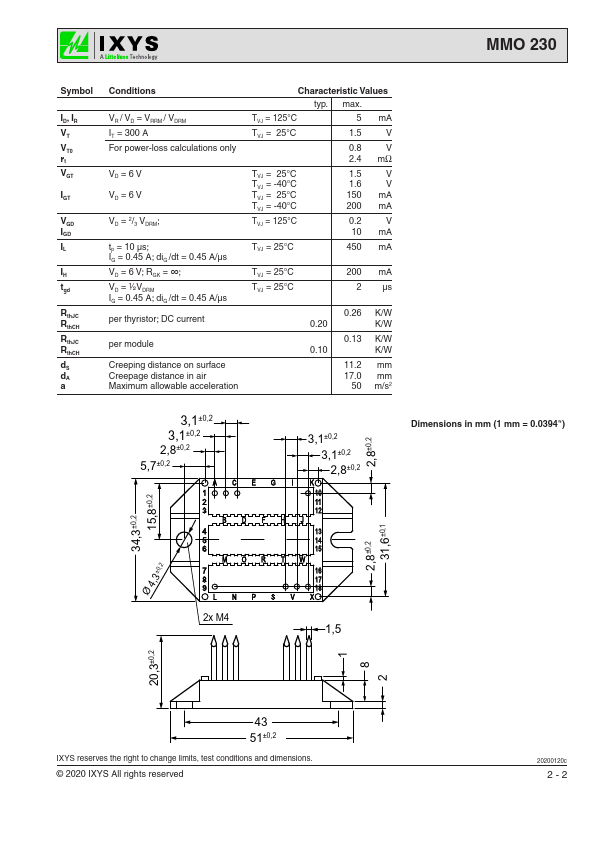

datasheet Preview Page 2

Datasheet Specifications

Part number
MMO230-16io7, MMO230
Manufacturer
IXYS
File Size
65.13 KB
Datasheet
MMO230-IXYS.pdf
Description
AC Controller Modules
Note
This datasheet PDF includes multiple part numbers: MMO230-16io7, MMO230.
Please refer to the document for exact specifications by model.

Features

* Thyristor controller for AC (circuit W1C acc. to IEC) for mains frequency
* Isolation voltage 3000 V~
* Planar glass passivated chips
* Low forward voltage drop

Applications

* Switching and control of single and three phase AC circuits
* Light and temperature control
* Softstart AC motor controller
* Solid state switches Advantages
* Easy to mount with two screws
* Space and weight savings
* Improved temperature an
