MX860 - +/-15V ePaper Source Driver

Product Overview

IXYS

Datasheet Details

Part number	MX860
Manufacturer	IXYS
File Size	110.52 KB
Description	+/-15V ePaper Source Driver
Datasheet	MX860 Datasheet
Additional preview pages of the MX860 datasheet.

Product details

Description

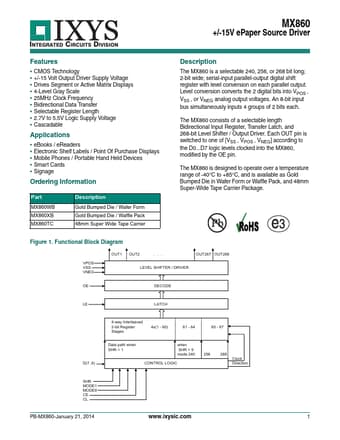

Gold Bumped Die / Wafer Form Gold Bumped Die / Waffle Pack 48mm Super Wide Tape Carrier MX860 +/-15V ePaper Source Driver Description The MX860 is a selectable 240, 256, or 268 bit long; 2-bit wide; serial-input parallel-output digital shift register with level conversion on each parallel output.Level conversion converts the 2 digital bits into VPOS , VSS , or VNEG analog output voltages.An 8-bit input bus simultaneously inputs 4 groups of 2 bits each.The MX860 consists of a selectable lengt

Features

CMOS Technology.
+/-15 Volt Output Driver Supply Voltage.
Drives Segment or Active Matrix Displays.
4-Level Gray Scale.
25MHz Clock Frequency.
Bidirectional Data Transfer.
Selectable Register Length.
2.7V to 5.5V Logic Supply Voltage.
Cascadable.
