P0248SC12E, P0248SC12D Datasheet - IXYS

P0248SC12E Fast Turn-off Thyristor

Date:- 09 Oct 2014 Data Sheet Issue:- 2 Fast Turn-off Thyristor Type P0248SC12x Absolute Maximum Ratings VDRM VDSM VRRM VRSM VOLTAGE RATINGS Repetitive peak off-state voltage, (note 1) Non-repetitive peak off-state voltage, (note 1) Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 1200 1200 1200 1300 IT(AV) IT(AV) IT(RMS) IT(d.c.) ITSM ITSM2 I2t I2t (di/dt)cr VRGM PG(AV) PGM VGD THS Tstg OTHER RATINGS Mean on-state current, Tsink=55°C,.

P0248SC12D-IXYS.pdf

This datasheet PDF includes multiple part numbers: P0248SC12E, P0248SC12D. Please refer to the document for exact specifications by model.

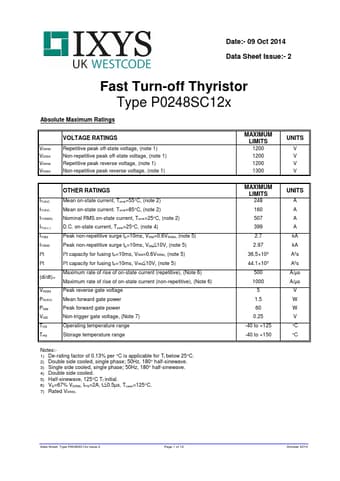

P0248SC12E Datasheet Preview Page 2 P0248SC12E Datasheet Preview Page 3

Datasheet Details

Part number:

P0248SC12E, P0248SC12D

Manufacturer:

IXYS

File Size:

953.85 KB

Description:

Fast turn-off thyristor.

Note:

This datasheet PDF includes multiple part numbers: P0248SC12E, P0248SC12D.
Please refer to the document for exact specifications by model.
