VBE60-06A - High Performance Fast Recovery Diode

IXYS

📥 Download Datasheet

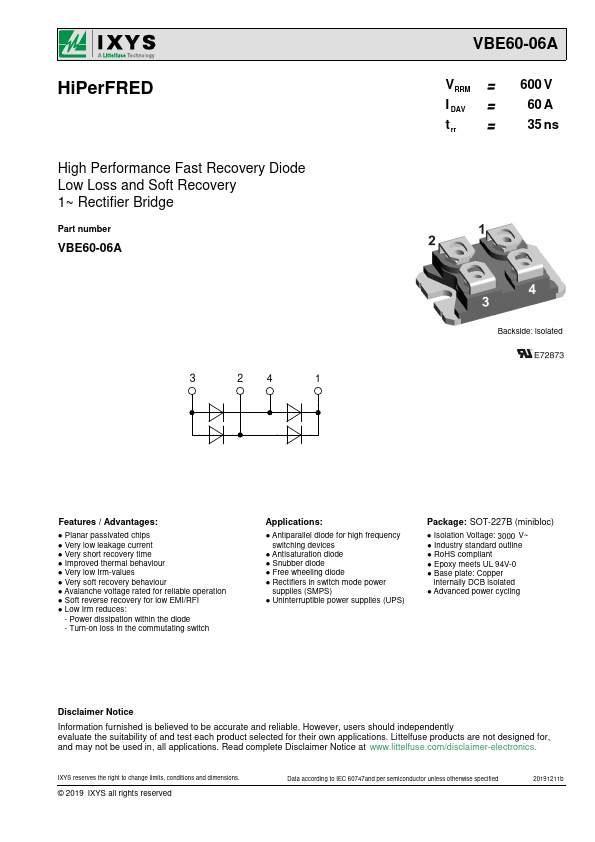

VBE60-06A Datasheet Preview — Preview of VBE60-06A PDF

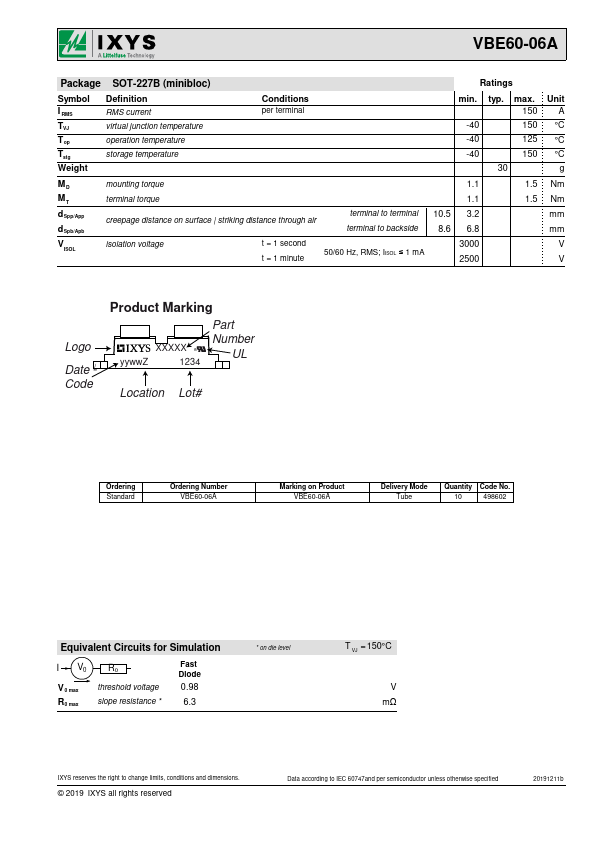

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	VBE60-06A
Manufacturer	IXYS
File Size	526.02 KB
Description	High Performance Fast Recovery Diode
Datasheet	VBE60-06A-IXYS.pdf

VBE60-06A Product details

Features

/ Advantages:.
Planar passivated chips.
Very low leakage current.
Very short recovery time.
Improved thermal behaviour.
Very low Irm-values.
Very soft recovery behaviour.
Avalanche voltage rated for reliable operation.
Soft reverse recovery for low EMI/RFI.
Low Irm reduces: - Power dissipation within the diode - Turn-on loss in the commutating switch.
