VBO72-08NO7 Standard Rectifier Module

VBO72-08NO7 Description

Standard Rectifier Module 1~ Rectifier Bridge Part number VBO72-08NO7 VBO72-08NO7 13~ Rectifier VRRM = I DAV = I FSM = 800 V 70 A 750 A + D1 D3 ~.

VBO72-08NO7 Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop

VBO72-08NO7 Applications

* Diode for main rectification
* For one phase bridge configurations
* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies
* Field supply for DC motors Package: PWS-D
* Isolation Voltage: 3000 V~
* Industry standard outlin

📥 Download Datasheet

Preview of VBO72-08NO7 PDF

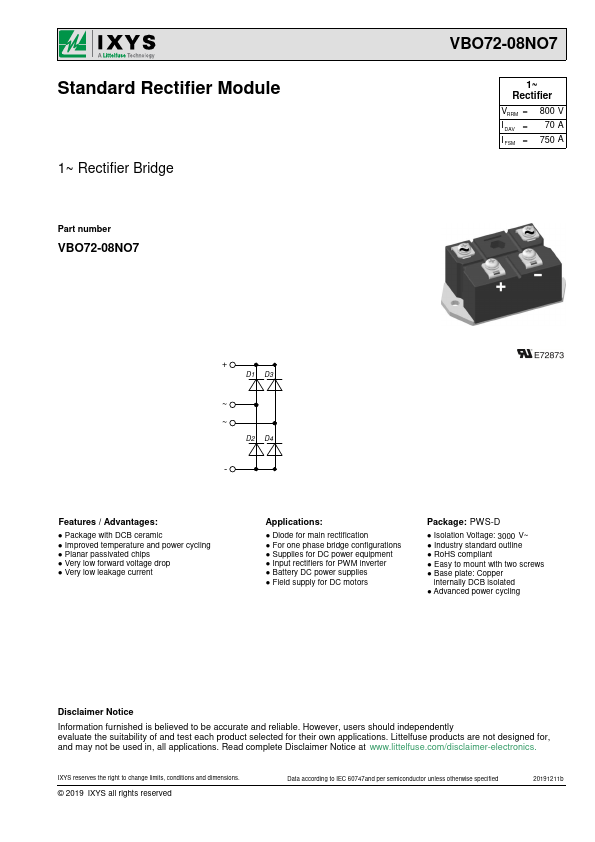

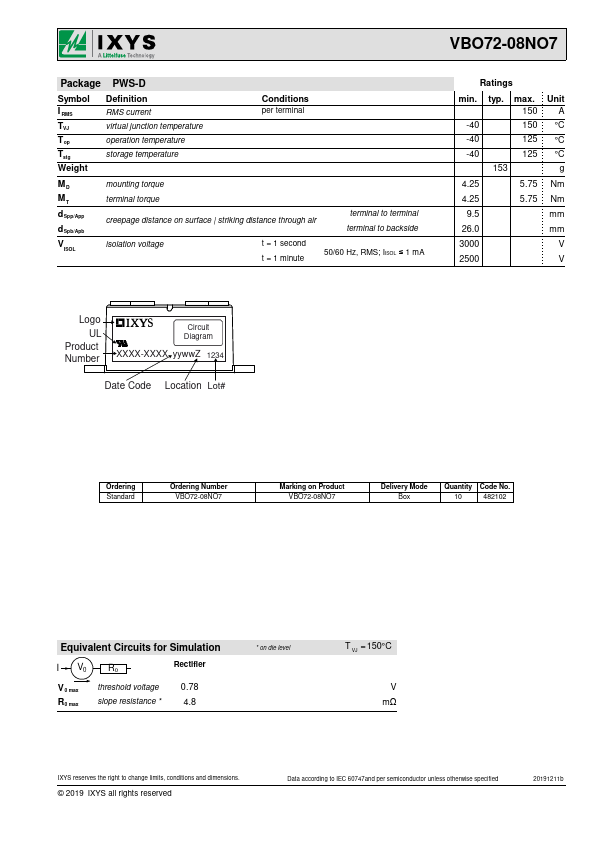

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VBO72-08NO7
Manufacturer
IXYS
File Size
226.35 KB
Datasheet
VBO72-08NO7-IXYS.pdf
Description
Standard Rectifier Module
