VDI50-06P1 IGBT Modules

VDI50-06P1 Description

VDI 50-06P1 VII 50-06P1 VID 50-06P1 VIO 50-06P1 IGBT Modules in ECO-PAC 2 Short Circuit SOA Capability Square RBSOA Preliminary data sheet VIO A1 S.

VDI50-06P1 Features

* NPT IGBT's - positive temperature coefficient of saturation voltage - fast switching
* FRED diodes - fast reverse recovery - low forward voltage
* Industry Standard Package - solderable pins for PCB mounting - isolated DCB ceramic base plate Advantages
* space and w

VDI50-06P1 Applications

* AC and DC motor control
* AC servo and robot drives
* power supplies
* welding inverters Recommended replacement: Please contact your local sales office 1-4 0650 VDI 50-06P1 VII 50-06P1 VID 50-06P1 VIO 50-06P1 Reverse diodes (FRED) Symbol Conditions IF25 TC =

📥 Download Datasheet

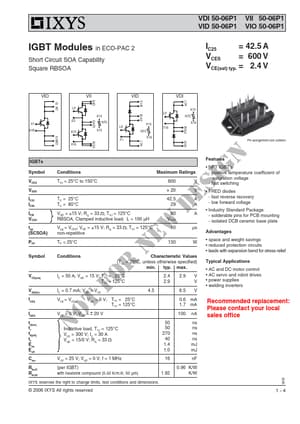

Preview of VDI50-06P1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VDI50-06P1
Manufacturer
IXYS
File Size
182.88 KB
Datasheet
VDI50-06P1-IXYS.pdf
Description
IGBT Modules
