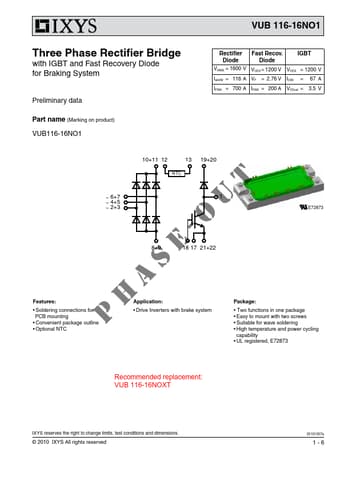

VUB116-16NO1
Features
:
- Soldering connections for PCB mounting
- Convenient package outline
- Optional NTC
NTC t
~ 6+7 ~ 4+5 ~ 2+3
1 a s e
- o u 8+9
18 17 21+22
E72873 h Application: p
- Drive Inverters with brake system
Package:
- kage
- Easy to mount with two screws
- Suitable for wave soldering
- High temperature and power cycling capability
- UL registered, E72873
Remended replacement: VUB 116-16NOXT
IXYS reserves the right to change limits, test conditions and dimensions. © 2010 IXYS All rights reserved
20101007a
1-6
VUB 116-16NO1
IGBT
Symbol Definitions
Conditions
VCES VGES VGEM IC25 IC80 Ptot VCE(sat) VGE(th) ICES collector emitter voltage max. DC gate voltage max. transient collector gate voltage collector current total power dissipation collector emitter saturation voltage gate emitter threshold voltage collector emitter leakage current
Cies td(on) td(off) Eon Eoff
ICM VCEK t SC (SCSOA)
RBSOA input capacitance turn-on delay time turn-off delay time turn-on...
