VUB135-22NO1 - High Voltage Standard Rectifier Module

VUB135-22NO1 Description

High Voltage Standard Rectifier Module 3~ Rectifier Bridge + Brake Unit + NTC VUB135-22NO1 3~ Rectifier Brake Chopper VRRM = I DAV = I FSM = 2200.

VUB135-22NO1 Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop
* Very low leakage current

VUB135-22NO1 Applications

* 3~ Rectifier with brake unit for drive inverters Package: E2-Pack
* Isolation Voltage: 3600 V~
* Industry standard outline
* RoHS compliant
* Soldering pins for PCB mounting
* Height: 17 mm
* Base plate: Copper internally DCB isolated
* Advanced power cycling

📥 Download Datasheet

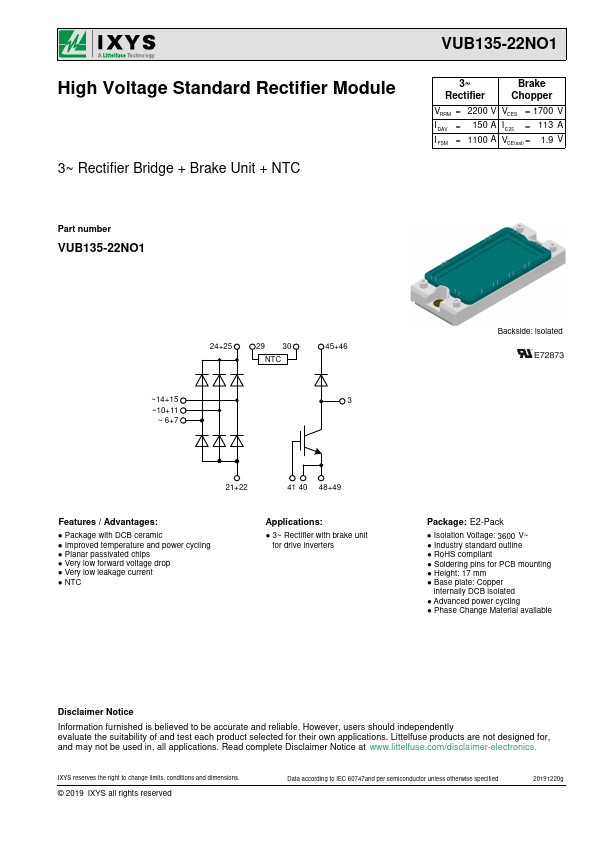

Preview of VUB135-22NO1 PDF

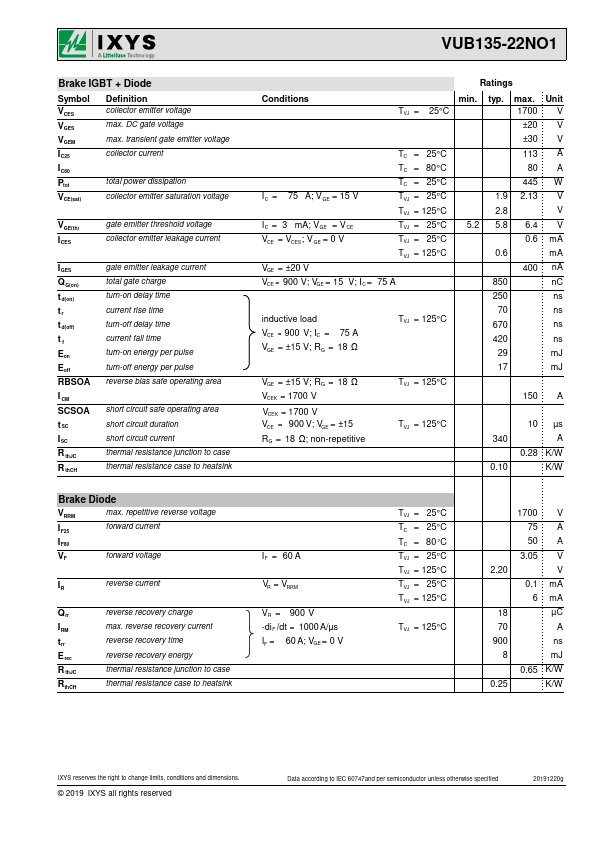

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VUB135-22NO1
Manufacturer
IXYS
File Size
453.99 KB
Datasheet
VUB135-22NO1-IXYS.pdf
Description
High Voltage Standard Rectifier Module
