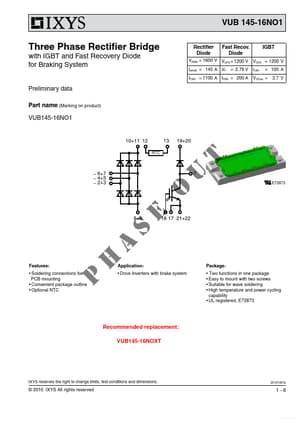

VUB145-16NO1
Features
: h a
Application:
- Drive Inverters with brake system s
Package:
- kage
- Easy to mount with two screws
- Suitable for wave soldering
- High temperature and power cycling capability
- UL registered, E72873
- Soldering connections for PCB mounting
- Convenient package outline
- Optional NTC p
Remended replacement: VUB145-16NOXT
IXYS reserves the right to change limits, test conditions and dimensions. e
-o
18 17 21+22
20101007a
© 2010 IXYS All rights reserved
1-6
Free Datasheet http://..net/
VUB 145-16NO1
IGBT Ratings Symbol VCES VGES VGEM IC25 IC80 Ptot VCE(sat) VGE(th) ICES Cies td(on) td(off) Eon Eoff ICM VCEK t SC (SCSOA) RBSOA Rth JC Rth CH Definitions collector emitter voltage max. DC gate voltage max. transient collector gate voltage collector current total power dissipation collector emitter saturation voltage gate emitter threshold voltage collector emitter leakage current input capacitance turn-on delay time turn-off delay time turn-on energy per pulse...
