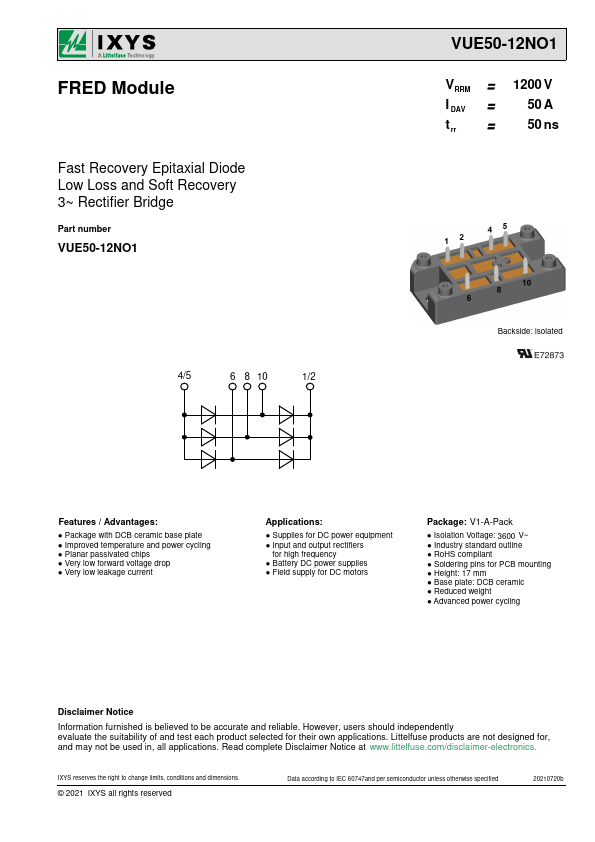

VUE50-12NO1 Fast Recovery Epitaxial Diode

FRED Module Fast Recovery Epitaxial Diode Low Loss and Soft Recovery 3~ Rectifier Bridge Part number VUE50-12NO1 4/5 6 8 10 1/2 VUE50-12NO1 VRRM .

VUE50-12NO1-IXYS.pdf

VUE50-12NO1 Datasheet Preview — Preview of VUE50-12NO1 PDF

Datasheet Details

Part number:

VUE50-12NO1

Manufacturer:

IXYS

File Size:

294.66 KB

Description:

Fast Recovery Epitaxial Diode

Features

* / Advantages:
* Package with DCB ceramic base plate
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop

Applications

* Supplies for DC power equipment
* Input and output rectifiers for high frequency
* Battery DC power supplies

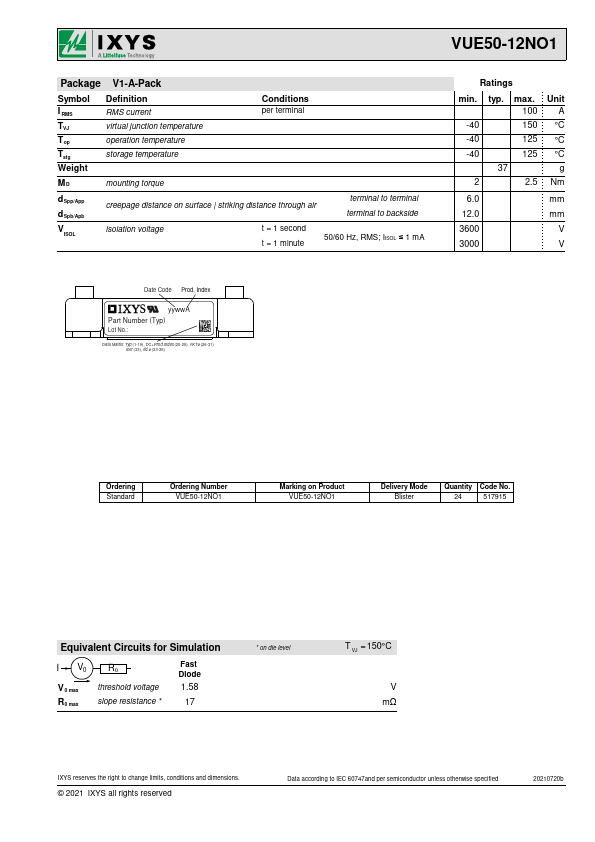

* Field supply for DC motors Package: V1-A-Pack
* Isolation Voltage: 3600 V~
* Industry standard outline
* RoHS compliant
* Soldering pins for PCB mounting
