VUO52-16NO1 Standard Rectifier

IXYS

Description

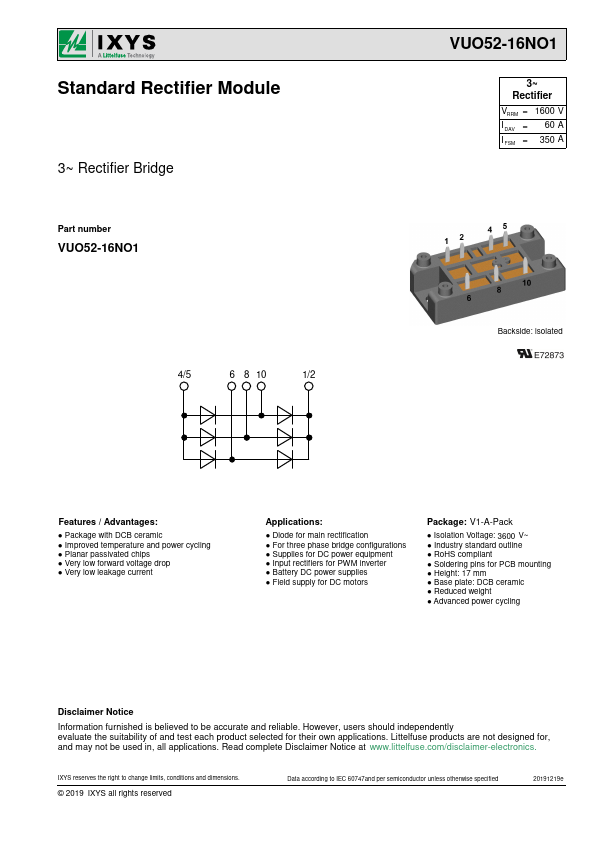

Standard Rectifier Module 3~ Rectifier Bridge Part number VUO52-16NO1 4/5 6 8 10 1/2 VUO52-16NO1 3~ Rectifier VRRM = I DAV = I FSM = 1600 V 60 .

📥 Download Datasheet

VUO52-16NO1 Datasheet Preview — Preview of VUO52-16NO1 PDF

Datasheet Specifications

Part number: VUO52-16NO1
Manufacturer: IXYS
File Size: 287.77 KB
Datasheet: VUO52-16NO1-IXYS.pdf
Description: Standard Rectifier

Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop

Applications

* Diode for main rectification
* For three phase bridge configurations
* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies

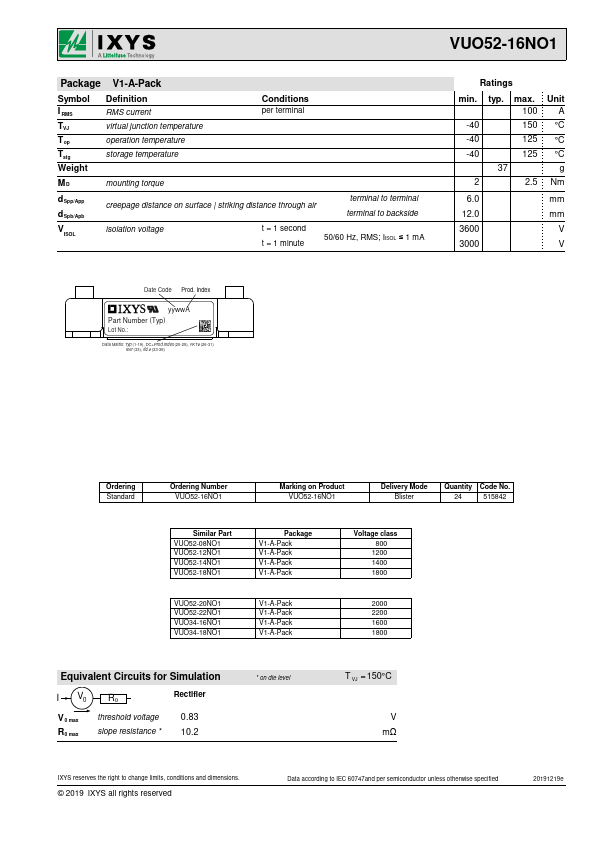

* Field supply for DC motors Package: V1-A-Pack
* Isolation Voltage: 3600 V~
* Industry standard
