VUO80-16NO1 Standard Rectifier Module

VUO80-16NO1 Description

Standard Rectifier Module 3~ Rectifier Bridge Part number VUO80-16NO1 4/5 6 8 10 1/2 VUO80-16NO1 3~ Rectifier VRRM = I DAV = I FSM = 1600 V 80 .

VUO80-16NO1 Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop

VUO80-16NO1 Applications

* Diode for main rectification
* For three phase bridge configurations
* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies
* Field supply for DC motors Package: V1-A-Pack
* Isolation Voltage: 3600 V~
* Industry standard

📥 Download Datasheet

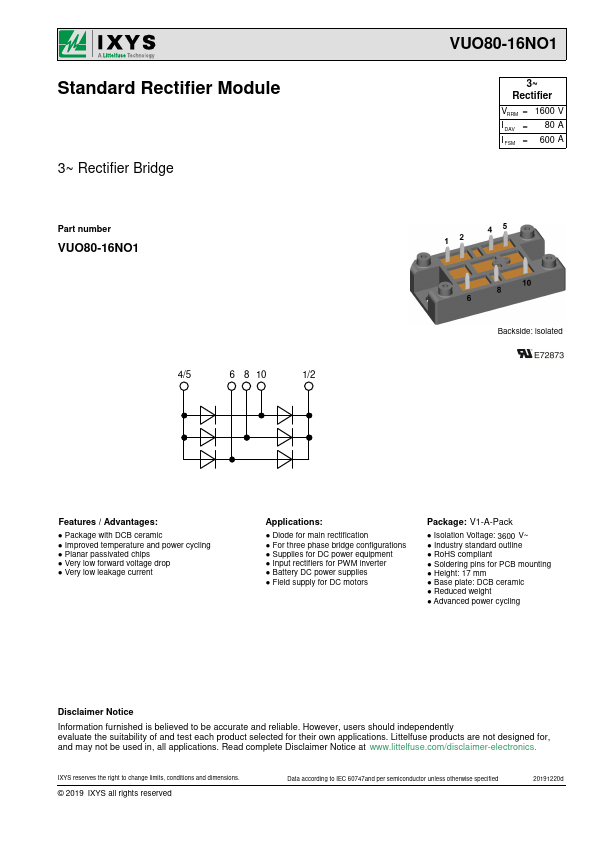

Preview of VUO80-16NO1 PDF

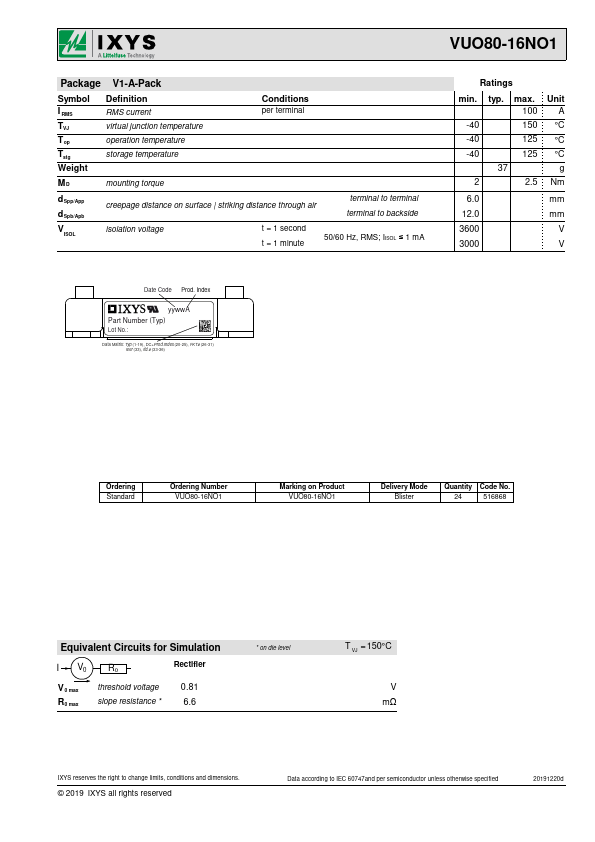

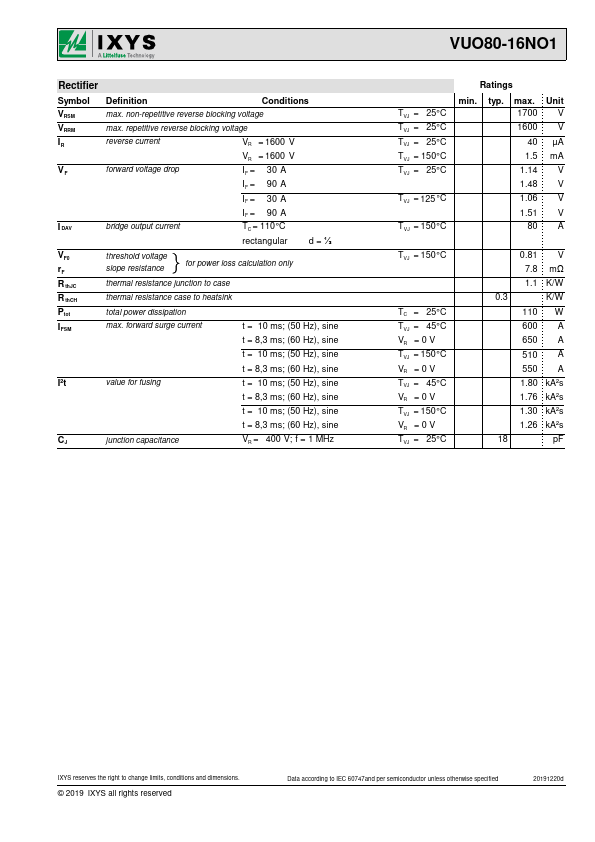

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VUO80-16NO1
Manufacturer
IXYS
File Size
288.50 KB
Datasheet
VUO80-16NO1-IXYS.pdf
Description
Standard Rectifier Module
