VUO98-12NO7 Standard Rectifier

IXYS

Description

Standard Rectifier Module 3~ Rectifier Bridge Part number VUO98-12NO7 VUO98-12NO7 3~ Rectifier VRRM = I DAV = I FSM = 1200 V 105 A 750 A PS18 D1.

📥 Download Datasheet

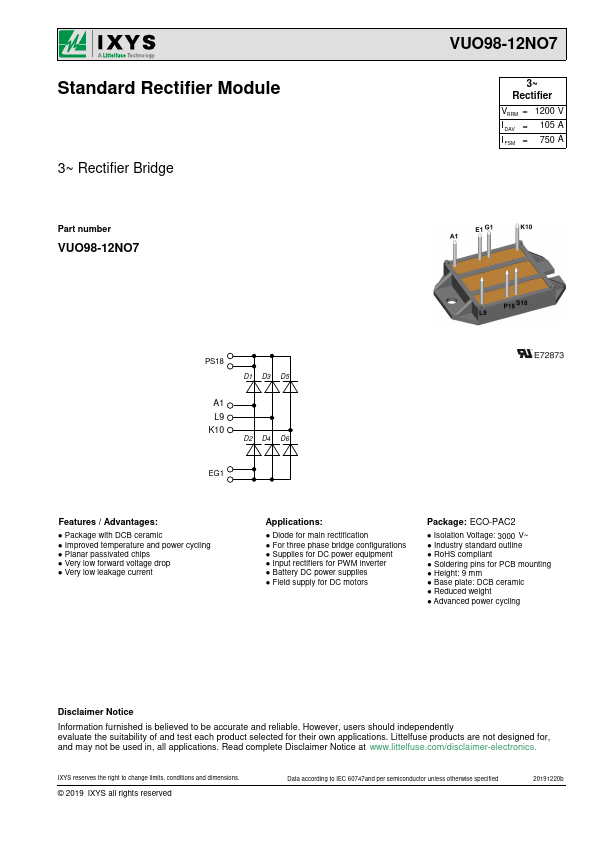

VUO98-12NO7 Datasheet Preview — Preview of VUO98-12NO7 PDF

Datasheet Specifications

Part number: VUO98-12NO7
Manufacturer: IXYS
File Size: 232.79 KB
Datasheet: VUO98-12NO7-IXYS.pdf
Description: Standard Rectifier

Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop

Applications

* Diode for main rectification
* For three phase bridge configurations
* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies
* Field supply for DC motors Package: ECO-PAC2
* Isolation Voltage: 3000 V~
* Industry standard o
