VVZ12-16io1 Three Phase Half Controlled Rectifier Bridge

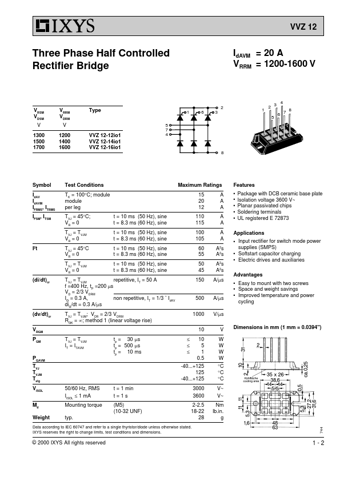

Three Phase Half Controlled Rectifier Bridge VVZ 12 IdAVM = 20 A VRRM = 1200-1600 V V RSM VDSM V 1300 1500 1700 V RRM VDRM V 1200 1400 1600 Type VVZ 12-12io1 VVZ 12-14io1 VVZ 12-16io1 2 1 63 5 7 4 8 1 23 4 5 67 8 Symbol I dAV IdAVM I ,I FRMS TRMS IFSM, ITSM I2t (di/dt)cr (dv/dt) cr VRGM PGM PGAVM TVJ TVJM Tstg V ISOL M d Weight Test Conditions Maximum Ratings T K = 100°C; module module per leg 15 A 20 A 12 A TVJ = 45°C; VR = 0 t = 10 ms (50 Hz), sine t = 8.3 ms (60 Hz), sine .

VVZ12-16io1 Features

* q Package with DCB ceramic base plate q Isolation voltage 3600 V~ q Planar passivated chips q Soldering terminals q UL registered E 72873 Applications q Input rectifier for switch mode power supplies (SMPS) q Softstart capacitor charging q Electric drives and auxiliaries Advantages q Easy to mount w

VVZ12-12io1-IXYS.pdf

VVZ12-16io1 Datasheet Preview — This datasheet PDF includes multiple part numbers: VVZ12-16io1, VVZ12-12io1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VVZ12-16io1, VVZ12-12io1

Manufacturer:

IXYS

File Size:

41.87 KB

Description:

Three phase half controlled rectifier bridge.

Note:

This datasheet PDF includes multiple part numbers: VVZ12-16io1, VVZ12-12io1.
Please refer to the document for exact specifications by model.
