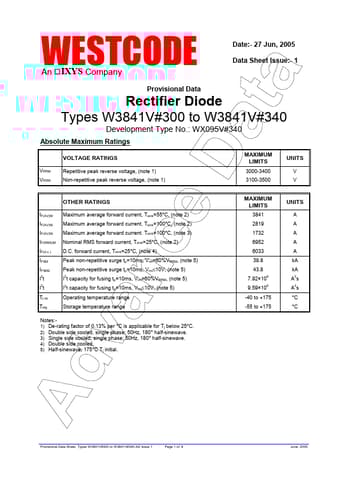

Date:- 27 Jun, 2005 Data Sheet Issue:- 1
Provisional Data
Rectifier Diode Types W3841V#300 to W3841V#340
Development Type No.: WX095V#340
Absolute Maximum Ratings
VRRM VRSM
VOLTAGE RATINGS
Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1)
MAXIMUM LIMITS
3000-3400
3100-3500
UNITS
V V
OTHER RATINGS
IF(AV)M IF(AV)M IF(AV)M IF(RMS)M IF(d.c.) IFSM IFSM2 I2t I2t Tj op Tstg
Maximum average forward current, Tsink=55°C, (note 2) Maximum average forward current. Tsink=100°C, (note 2) Maximum average forward current. Tsink=100°C, (note 3) Nominal RMS forward current, Tsink=25°C, (note 2) D.C.
