W5139TJ460 Rectifier Diode

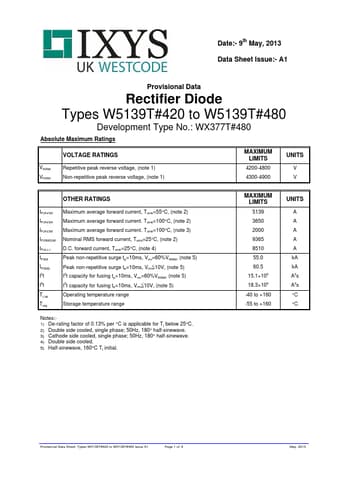

Date:- 9th May, 2013 Data Sheet Issue:- A1 Provisional Data Rectifier Diode Types W5139T#420 to W5139T#480 Development Type No.: WX377T#480 Absolute Maximum Ratings VRRM VRSM VOLTAGE RATINGS Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 4200-4800 4300-4900 UNITS V V OTHER RATINGS IF(AV)M IF(AV)M IF(AV)M IF(RMS)M IF(d.c.) IFSM IFSM2 I2t I2t Tj op Tstg Maximum average forward current, Tsink=55°C, (note 2) Maximum average forward cur.
