W7045MC060 Rectifier Diode

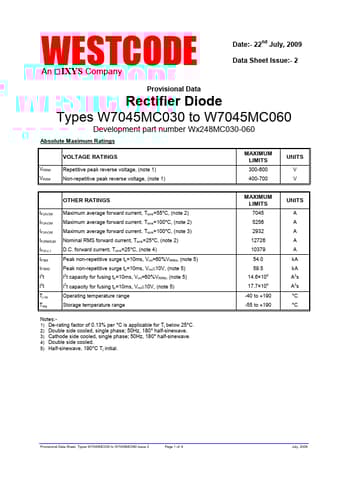

WESTCODE An IXYS Company Date:- 22nd July, 2009 Data Sheet Issue:- 2 Provisional Data Rectifier Diode Types W7045MC030 to W7045MC060 Development part number Wx248MC030-060 Absolute Maximum Ratings VRRM VRSM VOLTAGE RATINGS Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 300-600 400-700 UNITS V V OTHER RATINGS IF(AV)M IF(AV)M IF(AV)M IF(RMS)M IF(d.c.) IFSM IFSM2 I2t I2t Tj op Tstg Maximum average forward current, Tsink=55°C, (note 2).

W7045MC060 Datasheet (271.94 KB)
