A1265N - 2SA1265N

Product Overview

📥 Download Datasheet

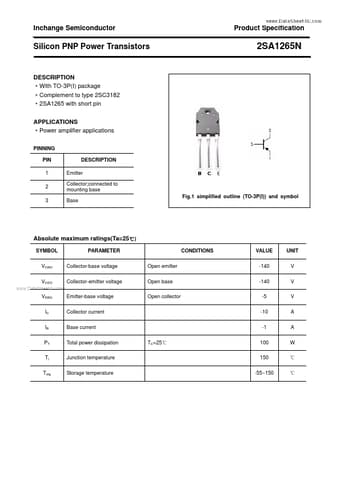

Datasheet preview – A1265N

Datasheet Details

Part number A1265N
Manufacturer Inchange Semiconductor Company
File Size 203.17 KB
Description 2SA1265N
Datasheet download datasheet A1265N Datasheet
Additional preview pages of the A1265N datasheet.

Product details

Description

With TO-3P(I) package Complement to type 2SC3182 2SA1265 with short pin APPLICATIONS Power amplifier applications PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Fig.1 simplified outline (TO-3P(I)) and symbol Absolute maximum ratings(Ta=25℃) SYMBOL VCBO VCEO www.DataSheet4U.com PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Total power dissipation Junction temperature Storage tem
