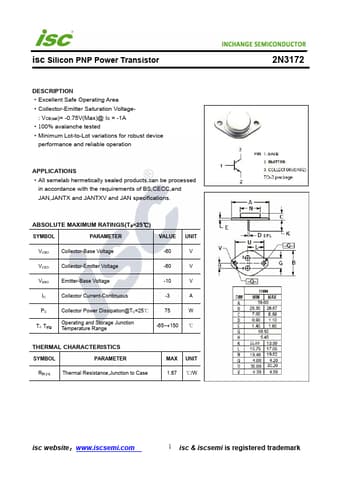

2N3172
2N3172 is Silicon PNP Power Transistor manufactured by Inchange Semiconductor.
DESCRIPTION
- Excellent Safe Operating Area
- Collector-Emitter Saturation Voltage-
: VCE(sat)= -0.75V(Max)@ IC = -1A
- 100% avalanche tested
- Minimum Lot-to-Lot variations for robust device performance and reliable operation
APPLICATIONS
- All semelab hermetically sealed products,can be processed in accordance with the requirements of BS,CECC,and JAN,JANTX and JANTXV and JAN specifications.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALUE
UNIT
VCBO
Collector-Base Voltage
-60
VCEO
Collector-Emitter Voltage
-60
VEBO
Emitter-Base Voltage
-10
Collector Current-Continuous
-3
Collector Power Dissipation@TC=25℃
TJ, Tstg
Operating and Storage Junction Temperature Range
-65~+150 ℃
THERMAL CHARACTERISTICS
SYMBOL
PARAMETER
Rth j-c Thermal Resistance,Junction to Case
MAX UNIT 1.67...
