2SA1645 POWER TRANSISTOR

2SA1645 Description

isc Silicon PNP Power Transistor .
Collector-Emitter Sustaining Voltage- : VCEO(SUS)= -100V(Min). High DC Current Gain- : hFE= 100(Min)@ (VCE= -2V , IC= -1A). Low Saturatio.

2SA1645 Applications

* Developed for use in switching power supplies, DC/DC converters, motor drivers, solenoid drivers, and other low-voltage power supply devices, as well as for highcurrent switching. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -150 V VCEO Colle

📥 Download Datasheet

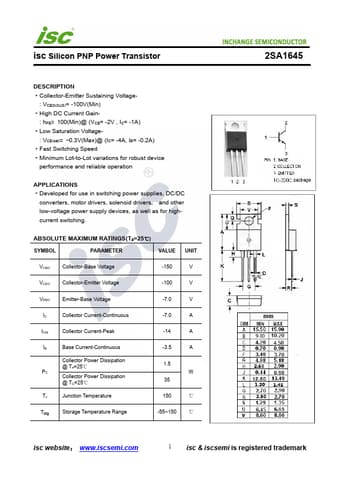

Preview of 2SA1645 PDF
datasheet Preview Page 2
