Datasheet Details
| Part number | 2SD5011 |
|---|---|
| Manufacturer | Inchange Semiconductor |
| File Size | 189.67 KB |
| Description | Power Transistor |
| Datasheet |
 2SD5011 Datasheet
|
|
|
| Part number | 2SD5011 |
|---|---|
| Manufacturer | Inchange Semiconductor |
| File Size | 189.67 KB |
| Description | Power Transistor |
| Datasheet |

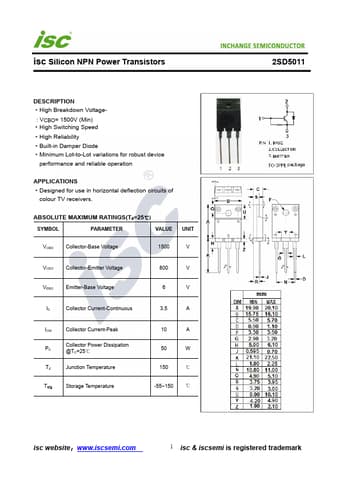

2SD5011 Datasheet
|
|
|
|
·High Breakdown Voltage- : VCBO= 1500V (Min) ·High Switching Speed ·High Reliability ·Built-in Damper Diode ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for use in horizontal deflection circuits of colour TV receivers.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage VEBO Emitter-Base Voltage 800 V 6 V IC Collector Current-Continuous 3.5 A ICM Collector Current-Peak PC Collector Power Dissipation @TC=25℃ TJ Junction Temperature Tstg Storage Temperature 10 A 50 W 150 ℃ -55~150 ℃ isc website：www.iscsemi.com 1 isc & iscsemi is registered trademark isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SD5011 ELECTRICAL CHARACTERISTICS TC=25℃ unless otherwise specified SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNIT VCE(sat) Collector-Emitter Saturation Voltage IC= 2.5A;
IB= 0.8A 8.0 V VBE(sat) Base-Emitter Saturation Voltage IC= 2.5A ;IB= 0.8A 1.5 V IEBO Emitter Cutoff Current VEB= 4V;
isc Silicon NPN Power Transistors INCHANGE Semiconductor 2SD5011.
