2SK1279 Datasheet - Inchange Semiconductor

datasheet Preview Page 1 from Datasheet4u.com

2SK1279 N-Channel MOSFET Transistor

isc N-Channel MOSFET Transistor .
Drain Current. ID= 15A@ TC=25℃. Drain Source Voltage- : VDSS=500V(Min). Fast Switching Speed. Minimum Lot-to-Lot variations f.

2SK1279-InchangeSemiconductor.pdf

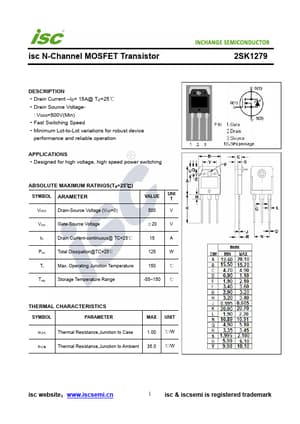

2SK1279 Datasheet Preview — Preview of 2SK1279 PDF

Datasheet Details

Part number:

2SK1279

Manufacturer:

Inchange Semiconductor

File Size:

203.54 KB

Description:

N-Channel MOSFET Transistor

Applications

* Designed for high voltage, high speed power switching ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VDSS Drain-Source Voltage (VGS=0) VALUE UNI T 500 V VGS Gate-Source Voltage ±20 V ID Drain Current-continuous@ TC=25℃ 15 A Ptot Total Dissipation@TC=25℃ 125 W Tj Max. Oper

2SK1279 Distributors
