2SK1331 - N-Channel MOSFET Transistor

2SK1331 Description

isc N-Channel MOSFET Transistor .
Drain Current. ID=15A@ TC=25℃. Drain Source Voltage- : VDSS=500V(Min). Minimum Lot-to-Lot variations for robust device performanc.

2SK1331 Applications

* Designed for high voltage, high speed power switching ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT DSS Drain-Source Voltage (VGS=0) 500 V VGS Gate-Source Voltage ±20 V ID Drain Current-continuous@ TC=25℃ 15 A Ptot Total Dissipation@TC=25℃ 100 W Tj Max. Operati

📥 Download Datasheet

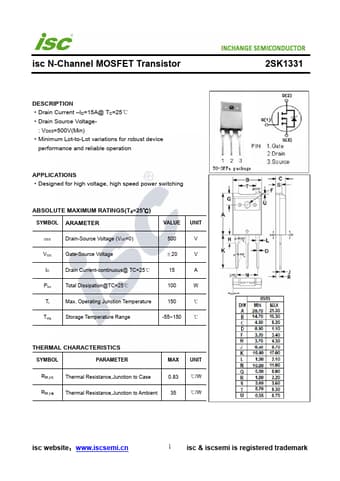

Preview of 2SK1331 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SK1331
Manufacturer
Inchange Semiconductor
File Size
194.44 KB
Datasheet
2SK1331-InchangeSemiconductor.pdf
Description
N-Channel MOSFET Transistor
