2SK1674 Datasheet - Inchange Semiconductor

datasheet Preview Page 1 from Datasheet4u.com

2SK1674 N-Channel MOSFET Transistor

isc N-Channel MOSFET Transistor .
Drain Current. ID=24A@ TC=25℃. Drain Source Voltage- : VDSS=300V(Min). Minimum Lot-to-Lot variations for robust device performanc.

2SK1674-InchangeSemiconductor.pdf

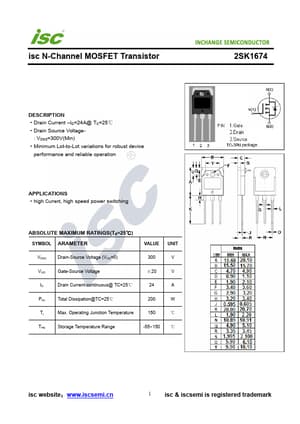

2SK1674 Datasheet Preview — Preview of 2SK1674 PDF

Datasheet Details

Part number:

2SK1674

Manufacturer:

Inchange Semiconductor

File Size:

215.62 KB

Description:

N-Channel MOSFET Transistor

Applications

* high Current, high speed power switching ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 300 V VGS Gate-Source Voltage ±20 V ID Drain Current-continuous@ TC=25℃ 24 A Ptot Total Dissipation@TC=25℃ 200 W Tj Max. Operating Junction
