2SK3774-01L Datasheet, Mosfet Transistor, Inchange Semiconductor

N-channel mosfet transistor

📥 Download PDF (283.51 KB)

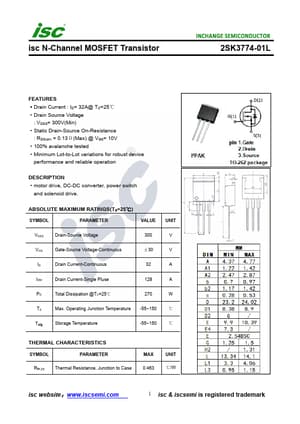

2SK3774-01L Datasheet Preview Page 1 — Preview of 2SK3774-01L Datasheet

PDF File Details

Part number:

2SK3774-01L

Manufacturer:

Inchange Semiconductor

File Size:

283.51 KB

Download:

📄 Download the 2SK3774-01L Datasheet PDF

Description:

N-channel mosfet transistor.
*motor drive, DC-DC converter, power switch
and solenoid drive.

ABSOLUTE MAXIMUM RATINGS(Ta=25℃)

SYMBOL

PARAMETER

VALUE

UNIT

VDSS

Drain-Source Voltage

300

V

VGS

Gate-Source Voltage-Continuo.

✔ 2SK3774-01L Features

Drain Current : ID= 32A@ TC=25℃
Drain Source Voltage : VDSS= 300V(Min)
Static Drain-Source On-Resistance : RDS(on) = 0.13Ω(Max) @ VGS= 10V
100% avalanche tested
Mini

✔ 2SK3774-01L Application

of our products. ISC products are intended for usage in general electronic equipment. The products are not d
