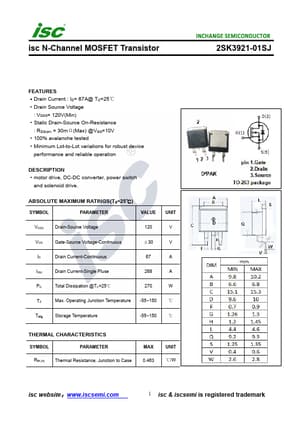

Part number: 2SK3921-01SJ
Manufacturer: Inchange Semiconductor
File Size: 357.48KB
Download: 📄 Datasheet
Description: N-Channel MOSFET Transistor
*Drain Current : ID= 67A@ TC=25℃
*Drain Source Voltage
: VDSS= 120V(Min)
*Static Drain-Source On-Resistance
: RDS(on) = 30mΩ(Max) @VGS=10V
*100% avalanche.
of our products. ISC products are intended for usage in general electronic equipment. The products are not designed for .
*motor drive, DC-DC converter, power switch
and solenoid drive.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALUE
UNIT
VDSS
Drain-Source Voltage
120
V
VGS
Gate-Source Voltage-Continuous
±30
V
ID
Drain Current-Continuous
67
.
