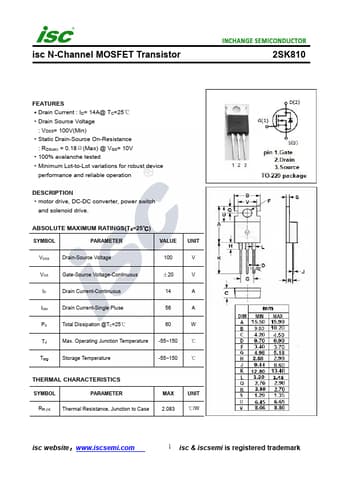

Description
motor drive, DC-DC converter, power switch
and solenoid drive.ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALUE
UNIT
VDSS
Drain-Source Voltage
100
V
VGS
Gate-Source Voltage-Continuous
±20
V
ID
Drain Current-Continuous
14
A
IDM
Drain Current-Single Pluse
56
A
PD
Total Dissipation @TC=25℃
60
W
TJ
Max.Operating Junction Temperature -55~150
℃
Tstg
Storage Temperature
-55~150
℃
THERMAL CHARACTERISTICS
SYMBOL
PARAMETER
Rth j-c Thermal Resistance, Juncti
Features
- Drain Current : ID= 14A@ TC=25℃.
- Drain Source Voltage
: VDSS= 100V(Min).
- Static Drain-Source On-Resistance
: RDS(on) = 0.18Ω(Max) @ VGS= 10V.
- 100% avalanche tested.
- Minimum Lot-to-Lot variations for robust device
performance and reliable operation.
